50.009

Active

Jacob GmbH

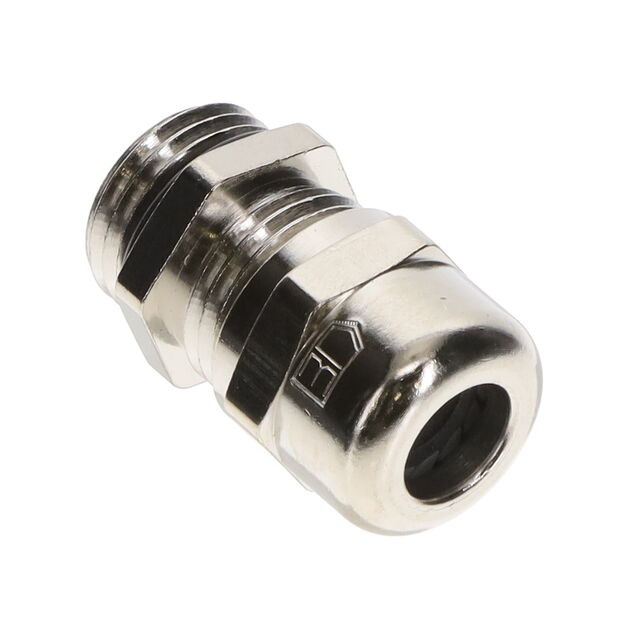

CABLE GLAND 4-8MM PG9 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 4-8MM PG9 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	50.009

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	PG9
Type	Cable Gland

Part	Ingress Protection	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Type	Color	Material
Jacob GmbH 50.009PA/SW/G	IP68 - Dust Tight Waterproof	Sealing Ring	100 °C	-40 °C	8 mm	0.315 in	8 mm	0.315 in	0.157 in	4 mm	PG9	Cable Gland
Jacob GmbH 50.009 PA7035	IP68 - Dust Tight Waterproof	Sealing Ring	100 °C	-40 °C	8 mm	0.315 in	8 mm	0.315 in	0.157 in	4 mm	PG9	Cable Gland	Gray
Jacob GmbH 50.009 PA/SW	IP68 - Dust Tight Waterproof	Sealing Ring	100 °C	-40 °C	8 mm	0.315 in	8 mm	0.315 in	0.157 in	4 mm	PG9	Cable Gland	Black
Jacob GmbH 50.009	IP68 - Dust Tight Waterproof	O-Ring Seal	100 °C	-40 °C	8 mm	0.315 in	6 mm	0.236 in	0.157 in	4 mm	PG9	Cable Gland	Silver	Brass Nickel Plated
Jacob GmbH 50.009 PABSSW	IP68 - Dust Tight Waterproof	Strain Relief	100 °C	-40 °C	8 mm	0.315 in	8 mm	0.315 in	0.157 in	4 mm	PG9	Cable Gland	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG9 Silver
