50.009PA/SW/G

Active

Jacob GmbH

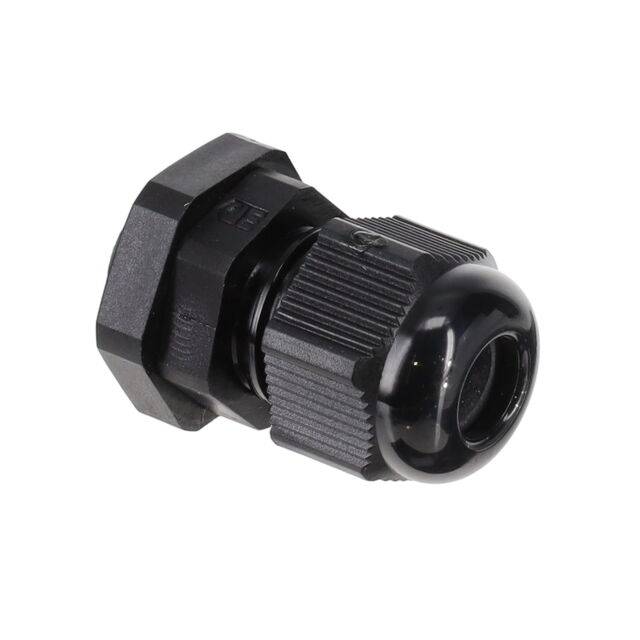

CABLE GLAND 4-8MM PG9 POLY SET

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 4-8MM PG9 POLY SET

Technical Specifications

Parameters and characteristics for this part

Specification	50.009PA/SW/G

Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG9
Type	Cable Gland

Part	Ingress Protection	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Type	Color	Material
Jacob GmbH 50.009PA/SW/G	IP68 - Dust Tight Waterproof	Sealing Ring	100 °C	-40 °C	8 mm	0.315 in	8 mm	0.315 in	0.157 in	4 mm	PG9	Cable Gland
Jacob GmbH 50.009 PA7035	IP68 - Dust Tight Waterproof	Sealing Ring	100 °C	-40 °C	8 mm	0.315 in	8 mm	0.315 in	0.157 in	4 mm	PG9	Cable Gland	Gray
Jacob GmbH 50.009 PA/SW	IP68 - Dust Tight Waterproof	Sealing Ring	100 °C	-40 °C	8 mm	0.315 in	8 mm	0.315 in	0.157 in	4 mm	PG9	Cable Gland	Black
Jacob GmbH 50.009	IP68 - Dust Tight Waterproof	O-Ring Seal	100 °C	-40 °C	8 mm	0.315 in	6 mm	0.236 in	0.157 in	4 mm	PG9	Cable Gland	Silver	Brass Nickel Plated
Jacob GmbH 50.009 PABSSW	IP68 - Dust Tight Waterproof	Strain Relief	100 °C	-40 °C	8 mm	0.315 in	8 mm	0.315 in	0.157 in	4 mm	PG9	Cable Gland	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG9
