MSPS-4-01

Active

Essentra Access Solutions

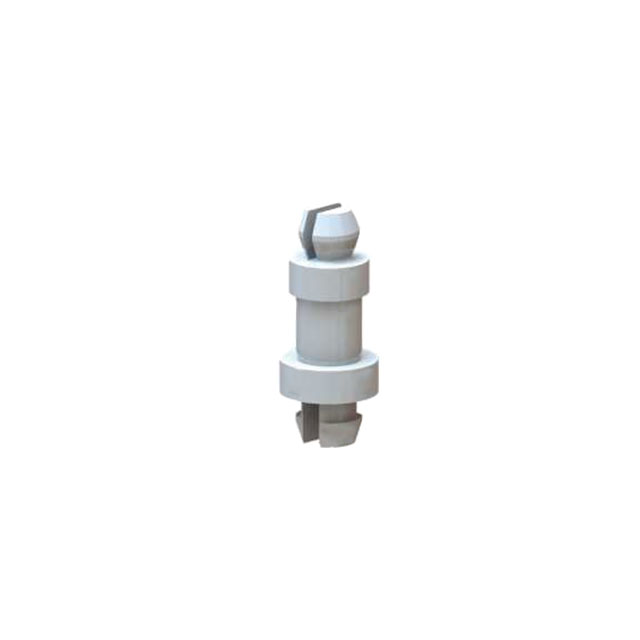

SUPT POST MINI .27"DIA 1/4"

Search across all available documentation for this part.

Active

Essentra Access Solutions

SUPT POST MINI .27"DIA 1/4"

Technical Specifications

Parameters and characteristics for this part

Specification	MSPS-4-01

Between Board Height	6.35 mm
Between Board Height	0.25 in
Between Board Height	0.25 in
Holding Type	Snap Fit
Length - Overall [x]	13.56 mm
Length - Overall [x]	0.534 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.157 "
Mounting Hole Diameter [diameter]	4 mm
Mounting Panel Thickness	0.062 in
Mounting Panel Thickness	0.0625 in
Mounting Panel Thickness	1.57 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Between Board Height	Holding Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Between Board Height	Length - Overall	Length - Overall
Essentra Access Solutions MSPS-3-19	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	4 mm	0.157 "	0.189 in	4.8 mm	Snap Lock	Snap Lock	12 mm	0.472 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions MSPS-4-01	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	3.99 mm	0.157 "	0.25 in	6.35 mm	Snap Fit	Snap Lock	13.56 mm	0.534 in	0.0625 "	0.062 "	1.57 mm	0.25 in
Essentra Access Solutions MSPS-6-19	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	4 mm	0.157 "	0.374 in	9.5 mm	Snap Lock	Snap Lock	16.7 mm	0.657 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions MSPS-10-01	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	3.99 mm	0.157 "	0.625 in	15.88 mm	Snap Fit	Snap Lock		0.908 "	0.0625 "	0.062 "	1.57 mm	0.625 in	23.06 mm
Essentra Access Solutions MSPS-4-19	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	4 mm	0.157 "	0.252 in	6.4 mm	Snap Lock	Snap Lock	13.6 mm	0.535 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions MSPS-11-19	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	4 mm	0.157 "	0.689 in	17.5 mm	Snap Lock	Snap Lock			0.0625 "	0.062 "	1.57 mm		24.7 mm	0.972 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Fit / Snap Lock Nylon 0.250" (6.35mm) 1/4"
