MSPS-10-01

Active

Essentra Access Solutions

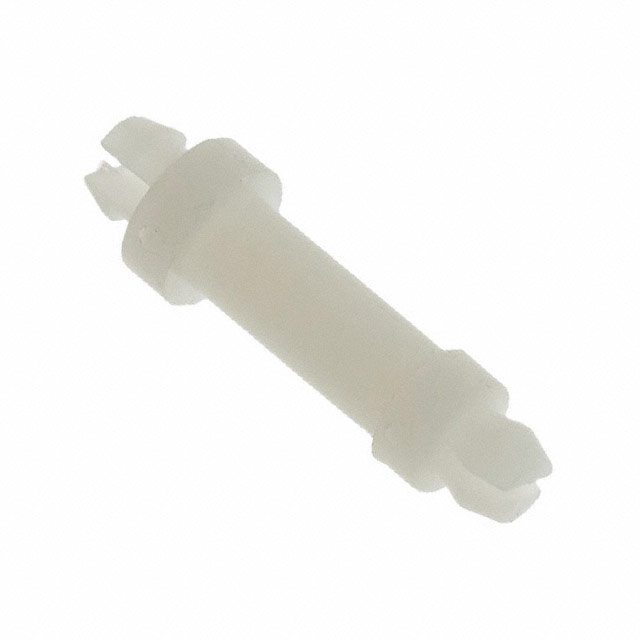

MINIATURE SUPPORT POST, NYLON6.6, 15.9MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

MINIATURE SUPPORT POST, NYLON6.6, 15.9MM

Technical Specifications

Parameters and characteristics for this part

Specification	MSPS-10-01

Between Board Height	15.88 mm
Between Board Height	0.625 in
Between Board Height	0.625 in
Holding Type	Snap Fit
Length - Overall	23.06 mm
Length - Overall [x]	0.908 "
Material	Nylon
Mounting Hole Diameter [diameter]	0.157 "
Mounting Hole Diameter [diameter]	4 mm
Mounting Panel Thickness	0.062 in
Mounting Panel Thickness	0.0625 in
Mounting Panel Thickness	1.57 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Between Board Height	Holding Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Between Board Height	Length - Overall	Length - Overall
Essentra Access Solutions MSPS-3-19	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	4 mm	0.157 "	0.189 in	4.8 mm	Snap Lock	Snap Lock	12 mm	0.472 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions MSPS-4-01	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	3.99 mm	0.157 "	0.25 in	6.35 mm	Snap Fit	Snap Lock	13.56 mm	0.534 in	0.0625 "	0.062 "	1.57 mm	0.25 in
Essentra Access Solutions MSPS-6-19	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	4 mm	0.157 "	0.374 in	9.5 mm	Snap Lock	Snap Lock	16.7 mm	0.657 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions MSPS-10-01	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	3.99 mm	0.157 "	0.625 in	15.88 mm	Snap Fit	Snap Lock		0.908 "	0.0625 "	0.062 "	1.57 mm	0.625 in	23.06 mm
Essentra Access Solutions MSPS-4-19	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	4 mm	0.157 "	0.252 in	6.4 mm	Snap Lock	Snap Lock	13.6 mm	0.535 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions MSPS-11-19	0.157 "	4 mm	0.062 in	0.0625 in	1.57 mm	Nylon	4 mm	0.157 "	0.689 in	17.5 mm	Snap Lock	Snap Lock			0.0625 "	0.062 "	1.57 mm		24.7 mm	0.972 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Fit / Snap Lock Nylon 0.625" (15.88mm) 5/8"
