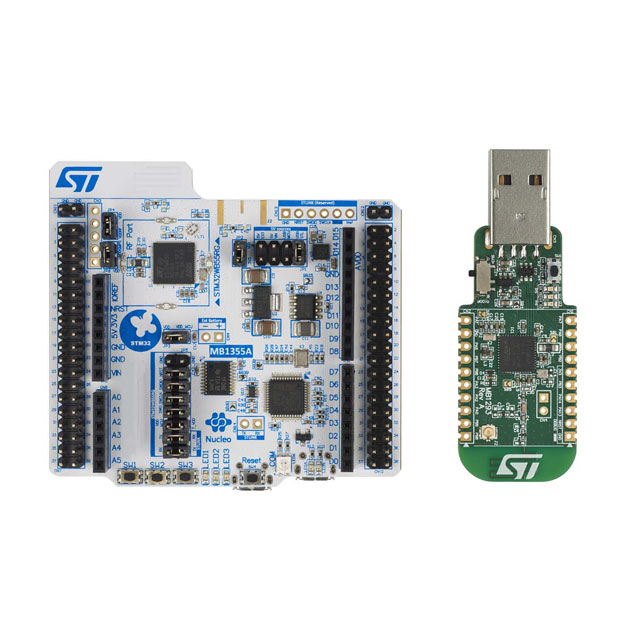

P-NUCLEO-WB55
ActiveDEVELOPMENT BOARD, STM32WB55, BLUETOOTH 5, 802.15.4, ARDUINO™ UNO V3 AND ST MORPHO COMPATIBLE
Deep-Dive with AI
Search across all available documentation for this part.
P-NUCLEO-WB55
ActiveDEVELOPMENT BOARD, STM32WB55, BLUETOOTH 5, 802.15.4, ARDUINO™ UNO V3 AND ST MORPHO COMPATIBLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P-NUCLEO-WB55 |
|---|---|
| For Use With/Related Products | STM32WB55 |
| Frequency | 2.4 GHz |
| Supplied Contents | Board(s) |
| Type | Transceiver, Bluetooth® 5.x (BLE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.75 | |
Description
General part information
P-NUCLEO-IKA02A1 Series
The P-NUCLEO-IOM01M1 is an STM32 Nucleo pack composed of the STEVAL-IOM001V1 and the NUCLEO-F446RE boards. The STEVAL-IOM001V1 is a single IO-Link master PHY layer (L6360) while the NUCLEO- F446RE runs an IO-Link stack rev 1.1 (developed by and property of TEConcept GmbH, license limited to 10k minutes, renewable without additional costs). IO-Link stack update is allowed exclusively by following the procedure described in UM2421 (freely available at www.st.com). Any other erase/overwrite of the pre-loaded stack makes impossible to restore it.
The STM32 Nucleo pack provides an affordable and easy-to-use solution for the evaluation of IO-Link applications, L6360 communication features and robustness, together with the STM32F446RET6 computation performance. The pack, hosting up to four STEVAL-IOM001V1 to build a quad port IO-Link master, can access the IO-Link physical layer and communicate with IO-Link Devices.
You can evaluate the tool via the dedicated GUI (IO-Link Control Tool©, property of TEConcept GmbH) or use it as an IO-Link master bridge accessible from the dedicated SPI interface: source code of demo project (Low-Level IO-Link Master Access Demo Application, developed by TEConcept GmbH) and API specification are available for free.
