Technical Specifications
Parameters and characteristics for this part
| Specification | P-NUCLEO-IOM01M1 |
|---|---|
| Contents | Board(s) |
| Embedded | MCU, 32-Bit |
| Embedded | True |
| Function | Transceiver, IO-Link® |
| Supplied Contents | Board(s) |
| Type | Interface |
| Utilized IC / Part | L6360, STM32F446RET6 |
P-NUCLEO-IKA02A1 Series
STM32 Nucleo pack for IO-Link device fully compatible with IO-Link v1.1 (PHY and stack)
| Part | Contents | Embedded | Embedded | Function | Utilized IC / Part | Supplied Contents | Type | Sensing Range [Min] | Sensing Range [Max] | Sensor Type | Frequency | For Use With/Related Products | Secondary Attributes | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | Board(s) | 32-Bit MCU | Transceiver IO-Link® | L6360 STM32F446RET6 | Board(s) | Interface | ||||||||
STMicroelectronics | Board(s) | 32-Bit MCU | Transceiver IO-Link® | L6362A STM32L073RZT6 | Board(s) | Interface | ||||||||
STMicroelectronics | STLM20 TGS5141 TSU111 | Accessories Board(s) | 0 | 5000 ppm | Gas | |||||||||
STMicroelectronics | Board(s) | Bluetooth® 5.x (BLE) Transceiver | 2.4 GHz | STM32WB55 | ||||||||||
STMicroelectronics | Accessories Board(s) | 32-Bit MCU | Motor Controller/Driver | L6230 mbed-Enabled Development STM32F302 | Accessories Board(s) | Power Management | Potentiometer Speed Control | Motors (BLDC PMSM) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.75 | |
Description
General part information
P-NUCLEO-IKA02A1 Series

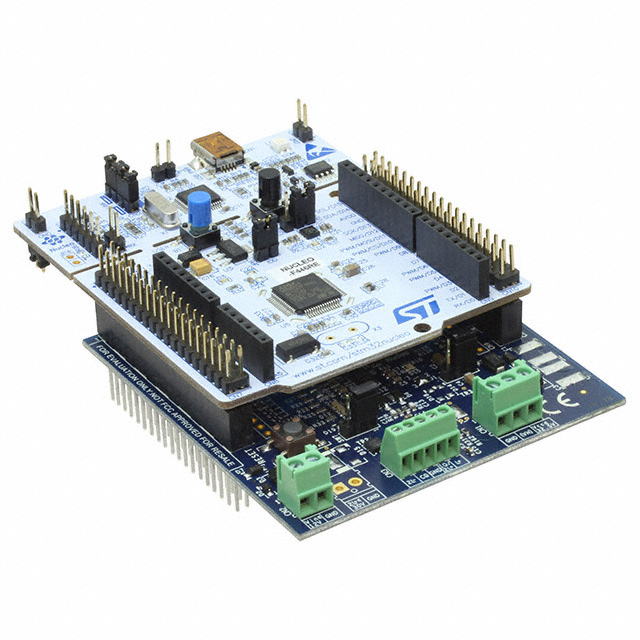

The P-NUCLEO-IOM01M1 is an STM32 Nucleo pack composed of the STEVAL-IOM001V1 and the NUCLEO-F446RE boards. The STEVAL-IOM001V1 is a single IO-Link master PHY layer (L6360) while the NUCLEO- F446RE runs an IO-Link stack rev 1.1 (developed by and property of TEConcept GmbH, license limited to 10k minutes, renewable without additional costs). IO-Link stack update is allowed exclusively by following the procedure described in UM2421 (freely available at www.st.com). Any other erase/overwrite of the pre-loaded stack makes impossible to restore it.
The STM32 Nucleo pack provides an affordable and easy-to-use solution for the evaluation of IO-Link applications, L6360 communication features and robustness, together with the STM32F446RET6 computation performance. The pack, hosting up to four STEVAL-IOM001V1 to build a quad port IO-Link master, can access the IO-Link physical layer and communicate with IO-Link Devices.
You can evaluate the tool via the dedicated GUI (IO-Link Control Tool©, property of TEConcept GmbH) or use it as an IO-Link master bridge accessible from the dedicated SPI interface: source code of demo project (Low-Level IO-Link Master Access Demo Application, developed by TEConcept GmbH) and API specification are available for free.
