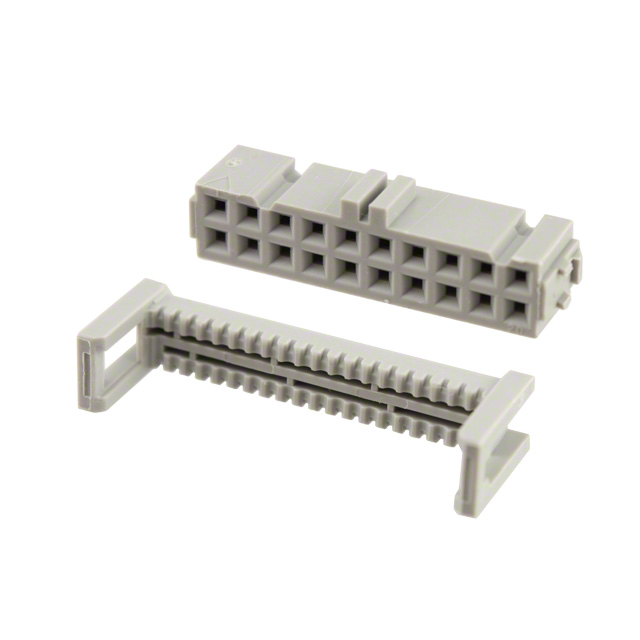

D89120-0131HK

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

D89120-0131HK

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D89120-0131HK

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Type	Female Socket
Features	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

D89120 Series

Part	Pitch [x]	Pitch [x]	Contact Type	Number of Positions	Connector Type	Mounting Type	Features	Cable Termination	Contact Finish	Wire Type	Row Spacing [x]	Row Spacing	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch - Cable	Pitch - Cable	Length	Length	Length	Pitch - Connector	Pitch - Connector	Shielding	Length
3M (TC) D89120-0131HK	2.54 mm	0.1 in	Female Socket	20	Receptacle	Free Hanging (In-Line)	Feed Through Polarizing Key	IDC	Gold	Ribbon Cable	0.1 in	2.54 mm	2	15 µin	0.38 µm	Gray
3M (TC) D89120-0101HK-3365/20-D-6				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded
3M (TC) D89120-0101HK-3365/20-D-3				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	76.2 mm	3 "		0.1 in	2.54 mm	Unshielded	0.25 ft
3M (TC) D89120-0031HK-3365/20-D-3				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	76.2 mm	3 "		0.1 in	2.54 mm	Unshielded	0.25 ft
3M (TC) D89120-0031HK-3365/20-D-6				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded
3M (TC) D89120-0001HK	2.54 mm	0.1 in	Female Socket	20	Receptacle	Free Hanging (In-Line)	Feed Through	IDC	Gold	Ribbon Cable	0.1 in	2.54 mm	2	15 µin	0.38 µm	Gray
3M (TC) D89120-0131HK-3365/20-S-6				20	Socket to Cable			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded
3M (TC) D89120-0131HK-3365/20-D-6				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.06
		10	$ 1.79
		25	$ 1.72
		50	$ 1.68
		100	$ 1.60
		250	$ 1.45
		500	$ 1.33
		1000	$ 1.14
		3000	$ 1.07
Newark	Each	1	$ 2.27
		10	$ 2.00
		25	$ 1.88
		50	$ 1.80
		100	$ 1.73
		250	$ 1.58
		500	$ 1.42
		1000	$ 1.26

Description

General part information

D89120 Series

The D89120-0131HK is a 20-way 2-row 0.100 x 0.100-inch Wire-to-board IDC Socket for 0.050-inch pitch ribbon cable with gold-plated phosphor bronze contacts. This D89 series socket comes with glass filled polyester insulation and accommodates 28/26AWG stranded wire. It has military polarization with center bump and bumps are designed to prevent premature latch locking during shipment. Double-recessed cover for cable terminating from either side virtually eliminating the need for single-recessed cover connectors.
