D89120-0101HK-3365/20-D-3

Active

3M (TC)

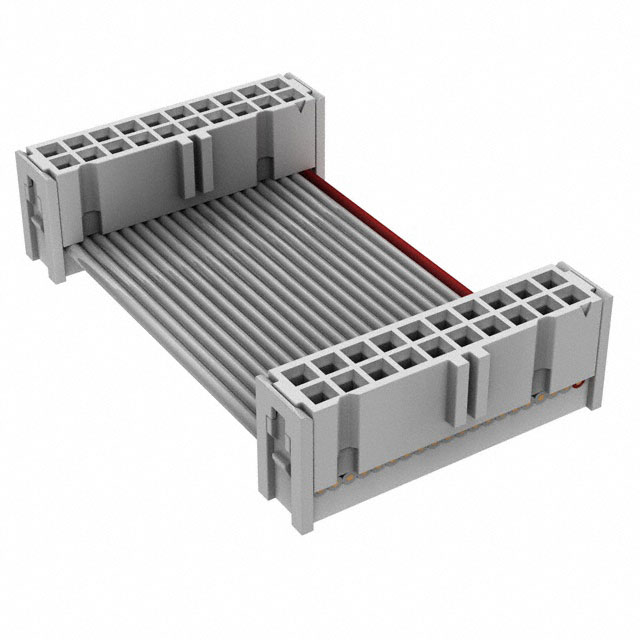

CABLE 20POS SOCKET TO SOCKET 3"

Search across all available documentation for this part.

Active

3M (TC)

CABLE 20POS SOCKET TO SOCKET 3"

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Contact Type	Number of Positions	Connector Type	Mounting Type	Features	Cable Termination	Contact Finish	Wire Type	Row Spacing [x]	Row Spacing	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch - Cable	Pitch - Cable	Length	Length	Length	Pitch - Connector	Pitch - Connector	Shielding	Length
3M (TC) D89120-0131HK	2.54 mm	0.1 in	Female Socket	20	Receptacle	Free Hanging (In-Line)	Feed Through Polarizing Key	IDC	Gold	Ribbon Cable	0.1 in	2.54 mm	2	15 µin	0.38 µm	Gray
3M (TC) D89120-0101HK-3365/20-D-6				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded
3M (TC) D89120-0101HK-3365/20-D-3				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	76.2 mm	3 "		0.1 in	2.54 mm	Unshielded	0.25 ft
3M (TC) D89120-0031HK-3365/20-D-3				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	76.2 mm	3 "		0.1 in	2.54 mm	Unshielded	0.25 ft
3M (TC) D89120-0031HK-3365/20-D-6				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded
3M (TC) D89120-0001HK	2.54 mm	0.1 in	Female Socket	20	Receptacle	Free Hanging (In-Line)	Feed Through	IDC	Gold	Ribbon Cable	0.1 in	2.54 mm	2	15 µin	0.38 µm	Gray
3M (TC) D89120-0131HK-3365/20-S-6				20	Socket to Cable			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded
3M (TC) D89120-0131HK-3365/20-D-6				20	Socket to Socket			IDC	Gold				2	15 µin	0.38 µm		0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular Socket to Socket 0.250' (76.20mm, 3.00")
