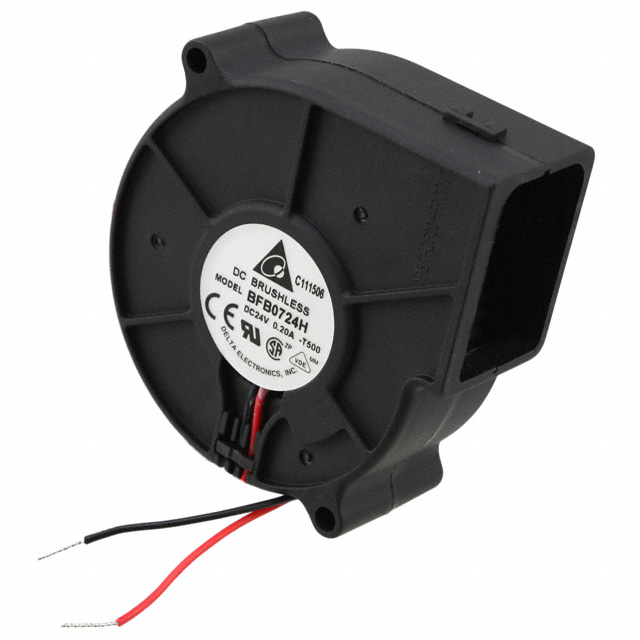

BFB0724H-T500

Obsolete

Delta Electronics

FAN BLOWER 75.7X30MM 24VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN BLOWER 75.7X30MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	BFB0724H-T500

Air Flow	0.316 m³/min
Air Flow	11.3 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Blower
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	38 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.88 W
RPM	2900 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	75.7 mm
Size / Dimension [z]	75.7 mm
Static Pressure	0.48 in H2O
Static Pressure	119.6 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	14 VDC
Width [y]	30 mm

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Current Rating (Amps)	Bearing Type	Air Flow	Air Flow	Noise	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Lifetime @ Temp.	Fan Type	Power (Watts)	Termination	Material - Frame	RPM	Approval Agency	Static Pressure	Static Pressure	Ingress Protection	Features
Delta Electronics BFB0724L	75.7 mm	75.7 mm	Square/Rounded	50 mA	Ball	7 CFM	0.196 mł/min	26 dB	27.6 VDC	14 VDC	24 VDC	30 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	50000 Hrs	Blower	1.2 W	2 Wire Leads	Plastic	1900 RPM	CE CSA UL VDE	0.157 in H2O	39.1 Pa
Delta Electronics BFB0724H-T500	75.7 mm	75.7 mm	Square/Rounded	120 mA	Ball	11.3 CFM	0.316 m³/min	38 dB(A)	27.6 VDC	14 VDC	24 VDC	30 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	50000 Hrs	Blower	2.88 W	2 Wire Leads	Plastic	2900 RPM	CE CSA UL VDE	0.48 in H2O	119.6 Pa	IP55 - Dust Protected Water Resistant
Delta Electronics BFB0724H-F00	75.7 mm	75.7 mm	Square/Rounded	120 mA	Ball	11.3 CFM	0.316 m³/min	38 dB(A)	27.6 VDC	14 VDC	24 VDC	30 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	50000 Hrs	Blower	2.88 W	3 Wire Leads	Plastic	2900 RPM	CE CSA UL VDE	0.48 in H2O	119.6 Pa		Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower 24VDC Square/Rounded - 75.7mm L x 75.7mm H Ball 11.3 CFM (0.316m³/min) 2 Wire Leads
