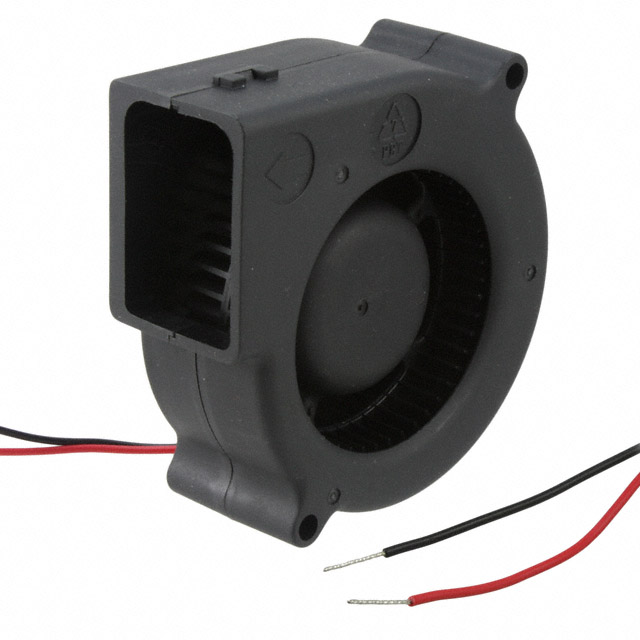

BFB0724L

Active

Delta Electronics

FAN BLOWER 75.7X30MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 75.7X30MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Current Rating (Amps)	Bearing Type	Air Flow	Air Flow	Noise	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Lifetime @ Temp.	Fan Type	Power (Watts)	Termination	Material - Frame	RPM	Approval Agency	Static Pressure	Static Pressure	Ingress Protection	Features
Delta Electronics BFB0724L	75.7 mm	75.7 mm	Square/Rounded	50 mA	Ball	7 CFM	0.196 mł/min	26 dB	27.6 VDC	14 VDC	24 VDC	30 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	50000 Hrs	Blower	1.2 W	2 Wire Leads	Plastic	1900 RPM	CE CSA UL VDE	0.157 in H2O	39.1 Pa
Delta Electronics BFB0724H-T500	75.7 mm	75.7 mm	Square/Rounded	120 mA	Ball	11.3 CFM	0.316 m³/min	38 dB(A)	27.6 VDC	14 VDC	24 VDC	30 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	50000 Hrs	Blower	2.88 W	2 Wire Leads	Plastic	2900 RPM	CE CSA UL VDE	0.48 in H2O	119.6 Pa	IP55 - Dust Protected Water Resistant
Delta Electronics BFB0724H-F00	75.7 mm	75.7 mm	Square/Rounded	120 mA	Ball	11.3 CFM	0.316 m³/min	38 dB(A)	27.6 VDC	14 VDC	24 VDC	30 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	50000 Hrs	Blower	2.88 W	3 Wire Leads	Plastic	2900 RPM	CE CSA UL VDE	0.48 in H2O	119.6 Pa		Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Square/Rounded - 75.7mm L x 75.7mm H Ball 7.0 CFM (0.196m³/min) 2 Wire Leads
