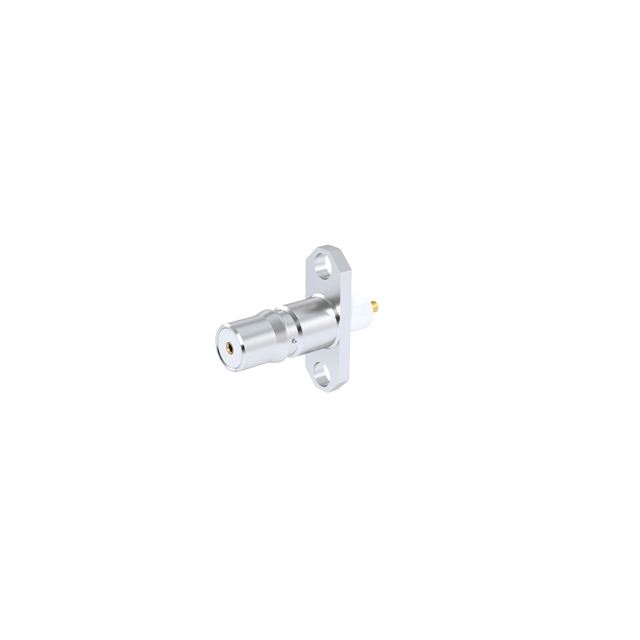

R123464130

Active

Radiall USA, Inc.

QMA / 2 HOLE FLANGE JACK RECEPTA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QMA / 2 HOLE FLANGE JACK RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	R123464130

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Type	Body Material	Number of Ports	Impedance	Shield Termination	Body Finish	Mounting Feature	Dielectric Material	Mounting Type	Center Contact Material	Contact Termination	Center Contact Plating	Fastening Type	Frequency - Max [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Housing Color
Radiall USA, Inc. R123464130	Female Socket Jack	Brass	1	50 Ohms	Solder	Gold	Flange	Polytetrafluoroethylene (PTFE)	Panel Mount Through Hole	Beryllium Copper	Solder	Gold	Snap-On	6000 MHz	Extended Insulation	-40 °C	105 ░C	500 V	Gold
Radiall USA, Inc. R123464110	Female Socket Jack	Brass	1	50 Ohms	Solder	Gold	Flange	Polytetrafluoroethylene (PTFE)	Panel Mount Through Hole	Beryllium Copper	Solder	Gold	Snap-On	6000 MHz	Extended Insulation	-40 °C	105 ░C	500 V	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 5.71

General part information

QMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
