633-044-663-510
ActiveEDAC Inc.
RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
633-044-663-510
ActiveEDAC Inc.
RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 633-044-663-510 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | B, DB |
| Shell Size, Connector Layout [x] | 3 |
| Termination | Solder |
633-044 Series
| Part | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shell Material, Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Flange Feature | Termination | Connector Style | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Mounting Type | Number of Rows | Dielectric Material | Connector Type | Current Rating (Amps) | Features | Contact Type | Material Flammability Rating | Number of Positions | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 8.89 mm | 0.35 in | 0.76 Ám | 30 Áin | Gold | Nickel Plated Steel | 85 °C | -55 °C | Copper Alloy | Housing/Shell (Unthreaded) | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 | |
EDAC Inc. | 8.89 mm | 0.35 in | 0.38 µm | 15 µin | Gold | Nickel Plated Steel | 85 °C | -55 °C | Copper Alloy | Housing/Shell (Unthreaded) | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 | |
EDAC Inc. | 8.89 mm | 0.35 in | Gold | Nickel Plated Steel | 85 °C | -55 °C | Copper Alloy | Female Screwlock (4-40) Mating Side | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 | Flash | ||
EDAC Inc. | 8.89 mm | 0.35 in | 0.38 µm | 15 µin | Gold | Nickel Plated Steel | 125 °C | -55 °C | Copper Alloy | 4-40 | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 | |
EDAC Inc. | 8.89 mm | 0.35 in | 0.76 Ám | 30 Áin | Gold | Nickel Plated Steel | 125 °C | -55 °C | Copper Alloy | Housing/Shell (4-40) | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 | |
EDAC Inc. | 8.89 mm | 0.35 in | 0.76 Ám | 30 Áin | Gold | Nickel Plated Steel | 85 °C | -55 °C | Copper Alloy | Female Screwlock (4-40) Mating Side | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 | |
EDAC Inc. | 8.89 mm | 0.35 in | 0.76 Ám | 30 Áin | Gold | Nickel Plated Steel | 85 °C | -55 °C | Copper Alloy | Female Screwlock (4-40) Mating Side | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 | |
EDAC Inc. | 8.89 mm | 0.35 in | 0.76 Ám | 30 Áin | Gold | Nickel Plated Steel | 85 °C | -55 °C | Copper Alloy | Housing/Shell (4-40) | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 | |
EDAC Inc. | 8.89 mm | 0.35 in | 0.76 Ám | 30 Áin | Gold | Nickel Plated Steel | 125 °C | -55 °C | Copper Alloy | 4-40 | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 | |
EDAC Inc. | 8.89 mm | 0.35 in | 0.76 Ám | 30 Áin | Gold | Nickel Plated Steel | 125 °C | -55 °C | Copper Alloy | 4-40 | Solder | D-Sub High Density | 3 | B DB | Board Edge Right Angle Through Hole | 3 | Polyester Thermoplastic | Male Pins Plug | 3 A | Grounding Indents Mounting Brackets Shielded | Signal | UL94 V-0 | 44 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
633-044 Series

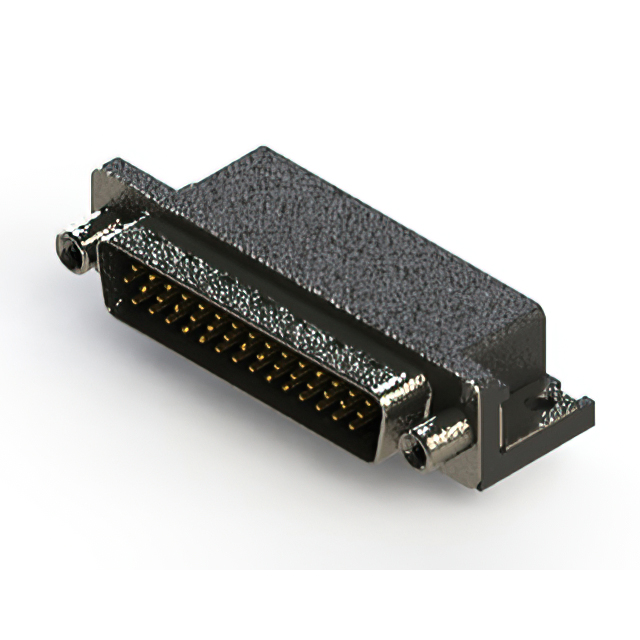

44 Position D-Sub, High Density Plug, Male Pins Connector
