EDAC Inc.

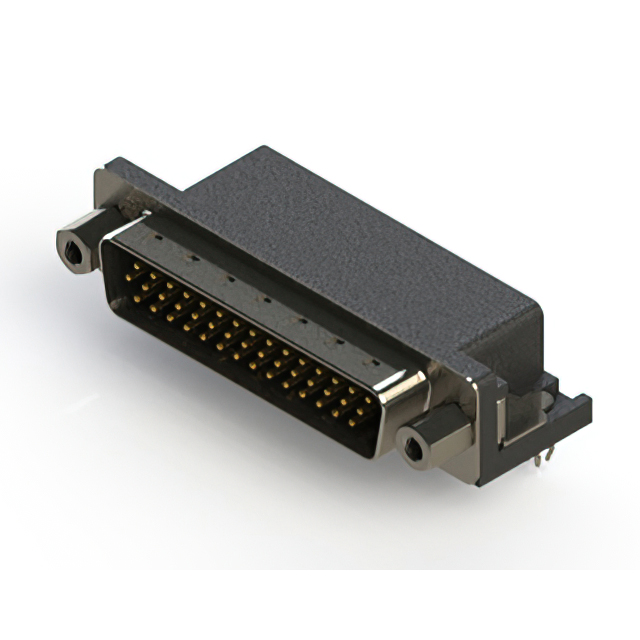

CONN D-SUB PLUG R/A 44POS GOLD

633-044-263-043

Active

EDAC Inc.

CONN D-SUB PLUG R/A 44POS GOLD

Description Specifications Series Pricing CAD Documents

Description

General part information

633-044 Series

44 Position D-Sub, High Density Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	633-044-263-043

Backset Spacing	0.35 in
Connector Layout	DB, B, High Density
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock, Grounding Indents
Finish	Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	44
Number of Rows	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3
Termination	Solder

633-044 Series

Part	Contact Type	Termination	Shell Size	Connector Layout	Mounting Type	Current Rating (Per Contact)	Contact Finish Thickness	Connector Type	Features	Contact Finish	Backset Spacing	Flange Feature	Number of Rows	Connector Style	Number of Positions	Shell Material	Finish	Material Flammability Rating	Dielectric Material	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 633-044-663-041	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	30 µin	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Housing Shell (Unthreaded)	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	85 °C
EDAC Inc. 633-044-263-043	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	0	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Female Screwlock (4-40) Mating Side	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	85 °C	Flash	Flash
EDAC Inc. 633-044-363-530	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	15 µin	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Mating Side (4-40)	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	125 °C
EDAC Inc. 633-044-663-542	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	30 µin	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Housing Shell (4-40)	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	125 °C
EDAC Inc. 633-044-663-043	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	30 µin	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Female Screwlock (4-40) Mating Side	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	85 °C
EDAC Inc. 633-044-663-013	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	30 µin	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Female Screwlock (4-40) Mating Side	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	85 °C
EDAC Inc. 633-044-663-052	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	30 µin	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Housing Shell (4-40)	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	85 °C
EDAC Inc. 633-044-263-042	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	0	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Housing Shell (4-40)	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	85 °C	Flash	Flash
EDAC Inc. 633-044-663-510	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	30 µin	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Mating Side (4-40)	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	125 °C
EDAC Inc. 633-044-263-515	Signal	Solder	3	B DB High Density	Board Edge Right Angle Through Hole	3 A	0	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Gold	0.35 in	Housing Shell (M3)	3	D-Sub High Density	44	Steel	Nickel Plated	UL94 V-0	Polyester Thermoplastic	Copper Alloy	-55 °C	125 °C	Flash	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

633-044-263-043 | Datasheet
