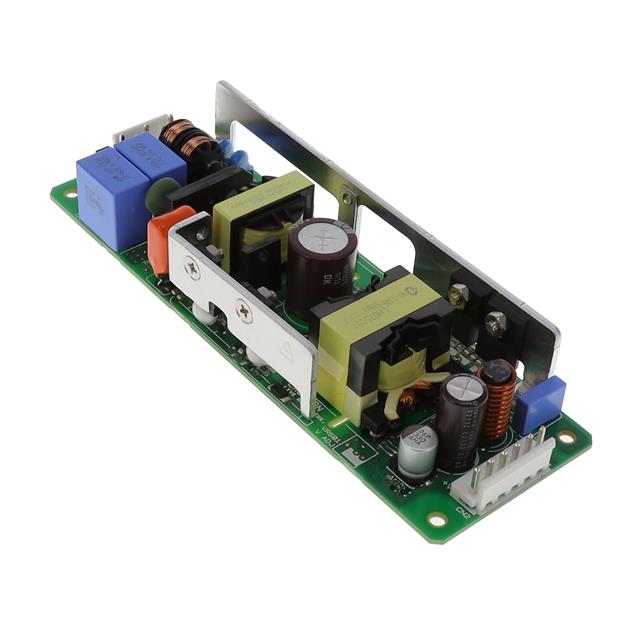

LHA75F-5
ActiveCosel USA, Inc.
AC/DC CONVERTER 5V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LHA75F-5
ActiveCosel USA, Inc.
AC/DC CONVERTER 5V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LHA75F-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, DEMKO, UL |
| Current - Output 1 | 12 A |
| Efficiency | 81 % |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [x] | 150.1 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 23.6 mm |
| Size / Dimension [z] | 0.93 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
LHA75F Series
| Part | Type | Current - Output 1 | Efficiency | Features | Mounting Type | Number of Outputs | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Standard Number | Approval Agency | Voltage - Isolation | Voltage - Output 1 | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cosel USA, Inc. | Open Frame | 12 A | 75 % | Adjustable Output Universal Input | Chassis Mount | 1 | -10 °C | 158 °F | ITE (Commercial) | 1.97 " | 5.91 " | 23.6 mm | 150.1 mm | 0.93 in | 50 mm | 62368-1 | CE cURus DEMKO UL | 3000 V | 3.3 V | 40 W |
Cosel USA, Inc. | Open Frame | 1.6 A | Adjustable Output Universal Input | Chassis Mount | 1 | -10 °C | 158 °F | ITE (Commercial) | 1.97 " | 5.91 " | 23.6 mm | 150.1 mm | 0.93 in | 50 mm | 62368-1 | CE cURus DEMKO UL | 3000 V | 48 V | 77 W | |
Cosel USA, Inc. | Open Frame | 5 A | 87.5 % | Adjustable Output Universal Input | Chassis Mount | 1 | -10 °C | 158 °F | ITE (Commercial) | 1.97 " | 5.91 " | 23.6 mm | 150.1 mm | 0.93 in | 50 mm | 62368-1 | CE cURus DEMKO UL | 3000 V | 15 V | 75 W |
Cosel USA, Inc. | Open Frame | 3.2 A | 88 % | Adjustable Output Universal Input | Chassis Mount | 1 | -10 °C | 158 °F | ITE (Commercial) | 1.97 " | 5.91 " | 23.6 mm | 150.1 mm | 0.93 in | 50 mm | 62368-1 | CE cURus DEMKO UL | 3000 V | 24 V | 77 W |
Cosel USA, Inc. | Open Frame | 12 A | 81 % | Adjustable Output Universal Input | Chassis Mount | 1 | -10 °C | 158 °F | ITE (Commercial) | 1.97 " | 5.91 " | 23.6 mm | 150.1 mm | 0.93 in | 50 mm | 62368-1 | CE cURus DEMKO UL | 3000 V | 5 V | |
Cosel USA, Inc. | Open Frame | 6.3 A | 86.5 % | Adjustable Output Universal Input | Chassis Mount | 1 | -10 °C | 158 °F | ITE (Commercial) | 1.97 " | 5.91 " | 23.6 mm | 150.1 mm | 0.93 in | 50 mm | 62368-1 | CE cURus DEMKO UL | 3000 V | 12 V | 76 W |
Cosel USA, Inc. | Open Frame | 2.1 A | Adjustable Output Universal Input | Chassis Mount | 1 | -10 °C | 158 °F | ITE (Commercial) | 1.97 " | 5.91 " | 23.6 mm | 150.1 mm | 0.93 in | 50 mm | 62368-1 | CE cURus DEMKO UL | 3000 V | 36 V | 76 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 52.78 | |
| 5 | $ 51.18 | |||
| 10 | $ 49.58 | |||
| 25 | $ 47.98 | |||
| 50 | $ 46.38 | |||
| 100 | $ 44.78 | |||
Description
General part information
LHA75F Series
Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
