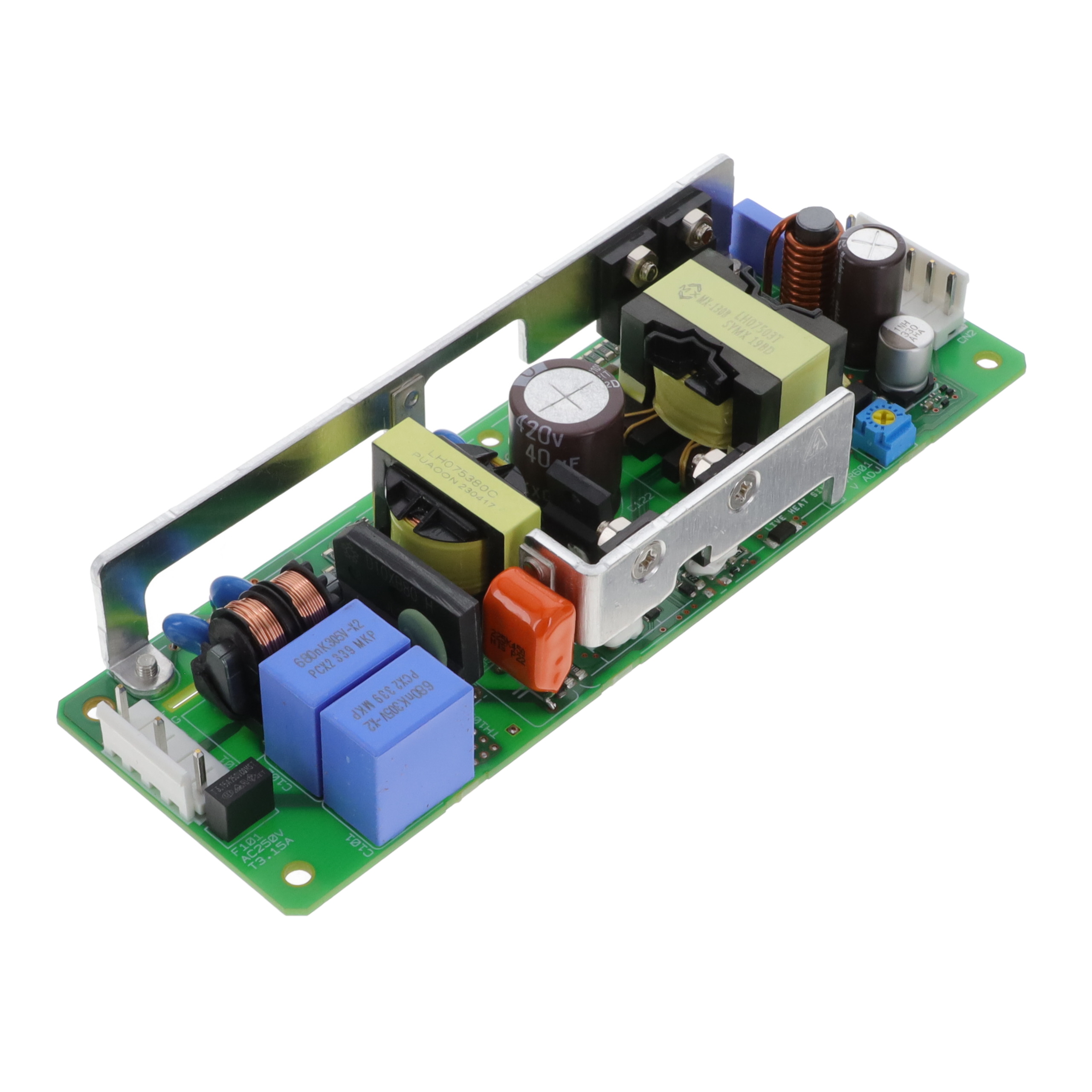

LHA75F-3R3-Y

Active

Cosel USA, Inc.

AC/DC CONVERTER 3.3V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LHA75F-3R3-Y

Active

Cosel USA, Inc.

AC/DC CONVERTER 3.3V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LHA75F-3R3-Y

Applications	ITE (Commercial)
Approval Agency	cURus, CE, DEMKO, UL
Current - Output 1	12 A
Efficiency	75 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	40 W
Size / Dimension [x]	5.91 "
Size / Dimension [x]	150.1 mm
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	23.6 mm
Size / Dimension [z]	0.93 in
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	3.3 V

LHA75F Series

Part	Type	Current - Output 1	Efficiency	Features	Mounting Type	Number of Outputs	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Standard Number	Approval Agency	Voltage - Isolation	Voltage - Output 1	Power (Watts)
Cosel USA, Inc. LHA75F-3R3-Y	Open Frame	12 A	75 %	Adjustable Output Universal Input	Chassis Mount	1	-10 °C	158 °F	ITE (Commercial)	1.97 "	5.91 "	23.6 mm	150.1 mm	0.93 in	50 mm	62368-1	CE cURus DEMKO UL	3000 V	3.3 V	40 W
Cosel USA, Inc. LHA75F-48	Open Frame	1.6 A		Adjustable Output Universal Input	Chassis Mount	1	-10 °C	158 °F	ITE (Commercial)	1.97 "	5.91 "	23.6 mm	150.1 mm	0.93 in	50 mm	62368-1	CE cURus DEMKO UL	3000 V	48 V	77 W
Cosel USA, Inc. LHA75F-15	Open Frame	5 A	87.5 %	Adjustable Output Universal Input	Chassis Mount	1	-10 °C	158 °F	ITE (Commercial)	1.97 "	5.91 "	23.6 mm	150.1 mm	0.93 in	50 mm	62368-1	CE cURus DEMKO UL	3000 V	15 V	75 W
Cosel USA, Inc. LHA75F-24	Open Frame	3.2 A	88 %	Adjustable Output Universal Input	Chassis Mount	1	-10 °C	158 °F	ITE (Commercial)	1.97 "	5.91 "	23.6 mm	150.1 mm	0.93 in	50 mm	62368-1	CE cURus DEMKO UL	3000 V	24 V	77 W
Cosel USA, Inc. LHA75F-5	Open Frame	12 A	81 %	Adjustable Output Universal Input	Chassis Mount	1	-10 °C	158 °F	ITE (Commercial)	1.97 "	5.91 "	23.6 mm	150.1 mm	0.93 in	50 mm	62368-1	CE cURus DEMKO UL	3000 V	5 V
Cosel USA, Inc. LHA75F-12	Open Frame	6.3 A	86.5 %	Adjustable Output Universal Input	Chassis Mount	1	-10 °C	158 °F	ITE (Commercial)	1.97 "	5.91 "	23.6 mm	150.1 mm	0.93 in	50 mm	62368-1	CE cURus DEMKO UL	3000 V	12 V	76 W
Cosel USA, Inc. LHA75F-36	Open Frame	2.1 A		Adjustable Output Universal Input	Chassis Mount	1	-10 °C	158 °F	ITE (Commercial)	1.97 "	5.91 "	23.6 mm	150.1 mm	0.93 in	50 mm	62368-1	CE cURus DEMKO UL	3000 V	36 V	76 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 52.78
		5	$ 51.18
		10	$ 49.58
		25	$ 47.98
		50	$ 46.38
		100	$ 44.78

Description

General part information

LHA75F Series

Open Frame AC DC Converters 1 Output 3.3V 85 ~ 264 VAC Input
