2-796689-0

Active

TE Connectivity AMP Connectors

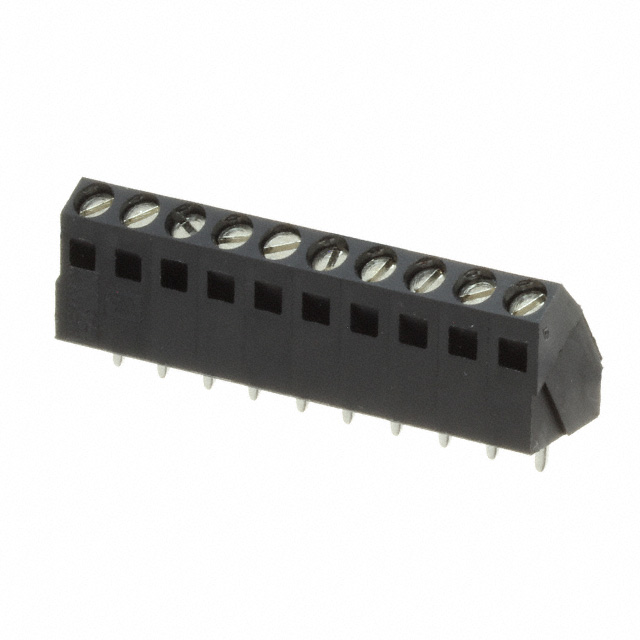

TERM BLOCK 20POS 35DEG 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-796689-0

Active

TE Connectivity AMP Connectors

TERM BLOCK 20POS 35DEG 5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-796689-0	796689 Series

Clamp Material - Plating	Brass - Tin Plated	Brass - Tin Plated
Color	Black	Black
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	35 °	35 °
Mating Orientation	145 °	145 °
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	20	2 - 20
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

796689 Series

TERM BLOCK 8POS 35DEG 5MM PCB

Part	Number of Levels	Pitch [x]	Pitch [x]	Color	Wire Gauge [Max]	Wire Gauge [Min]	Wire Termination	Screw Thread	Voltage	Current	Clamp Material - Plating	Mounting Type	Screw Material - Plating	Positions Per Level	Contact Material - Plating [custom]	Torque - Screw	Torque - Screw	Features	Mating Orientation	Mating Orientation
TE Connectivity AMP Connectors 796689-8	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	8	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-4	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	4	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 1-796689-0	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	10	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 2-796689-0	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	20	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 1-796689-3	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	13	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 1-796689-1	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	11	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-3	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	3	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-2	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	2	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-7	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	7	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °
TE Connectivity AMP Connectors 796689-6	1	5 mm	0.197 in	Black	30 AWG	12 AWG	Screw - Rising Cage Clamp	M3	300 V	17.5 A	Brass - Tin Plated	Through Hole	Brass - Nickel Plated	6	Brass - Tin Plated	0.79 Nm	7 Lb-In	Interlocking (Side)	35 °	145 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.61
		10	$ 16.18
		25	$ 14.47
		50	$ 13.45
		100	$ 12.63
		250	$ 11.81
		500	$ 11.35

Description

General part information

796689 Series

20 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.197" (5.00mm) Through Hole
