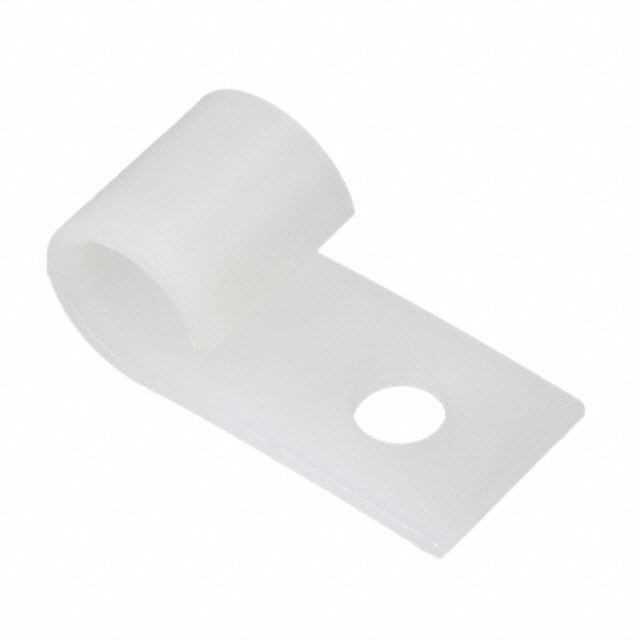

EXWHC2-250-01

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 6.4 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 21.1 MM, 10 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 6.4 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 21.1 MM, 10 MM

Technical Specifications

Parameters and characteristics for this part

Specification	EXWHC2-250-01

Color	Natural
Length	0.827 in
Length	21 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	1 mm
Material Thickness	0.039 in
Mounting Type	Fastener
Opening Size	6.35 mm
Opening Size [diameter]	0.25 in
Panel Hole Size	0.157 in
Panel Hole Size	4 mm
Screw Size	#6
Screw Size	M4
Type	Clip, P-Type
Type Attributes	Locking, Round
Width [y]	0.394 in
Width [y]	10 mm

Part	Material Flammability Rating	Material	Color	Opening Size [diameter]	Opening Size	Width [y]	Width [y]	Length	Length	Type	Mounting Type	Type Attributes	Screw Size	Screw Size	Material Thickness	Material Thickness	Panel Hole Size	Panel Hole Size	Length [x]	Length [x]	Opening Size [diameter]	Opening Size [custom]	Opening Size [custom]
Essentra Access Solutions EXWHC2-250-01	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	0.25 in	6.35 mm	0.394 in	10 mm	0.827 in	21 mm	Clip P-Type	Fastener	Locking Round	#6	M4	1 mm	0.039 in	0.157 in	4 mm
Essentra Access Solutions EXWHC2-500-01	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	0.5 in		0.394 in	10 mm			Clip P-Type	Fastener	Locking Round	#6	M4	1.6 mm	0.063 in	0.157 in	4 mm	30 mm	1.181 in	12.7 mm
Essentra Access Solutions EXWHC2-750-01	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural							Clip P-Type	Fastener	Locking Round	#6	M4	1.78 mm	0.07 in	0.157 in	4 mm	34.98 mm	1.377 "		0.708 in	17.98 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, P-Type Natural Fastener 0.250" (6.35mm)
