EXWHC2-500-01

Active

Essentra Access Solutions

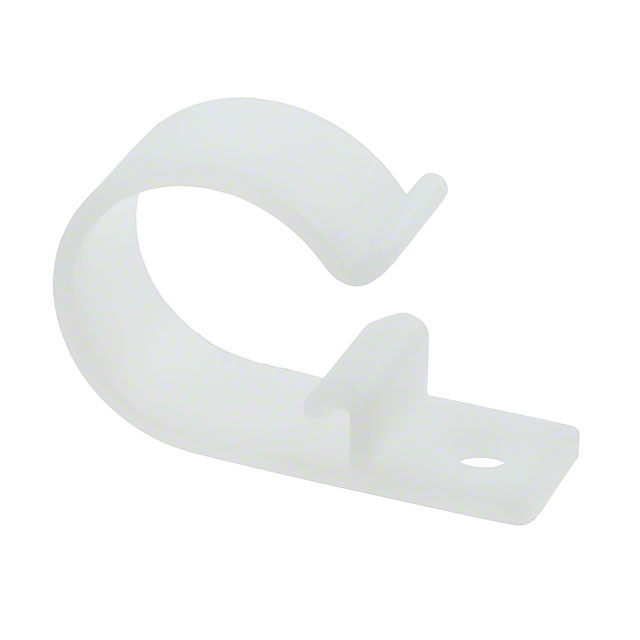

CBL CLIP P-TYPE NATURAL FASTENER

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP P-TYPE NATURAL FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	EXWHC2-500-01

Color	Natural
Length [x]	30 mm
Length [x]	1.181 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.063 in
Material Thickness	1.6 mm
Mounting Type	Fastener
Opening Size [diameter]	12.7 mm
Opening Size [diameter]	0.5 in
Panel Hole Size	0.157 in
Panel Hole Size	4 mm
Screw Size	#6
Screw Size	M4
Type	Clip, P-Type
Type Attributes	Locking, Round
Width [y]	0.394 in
Width [y]	10 mm

Part	Material Flammability Rating	Material	Color	Opening Size [diameter]	Opening Size	Width [y]	Width [y]	Length	Length	Type	Mounting Type	Type Attributes	Screw Size	Screw Size	Material Thickness	Material Thickness	Panel Hole Size	Panel Hole Size	Length [x]	Length [x]	Opening Size [diameter]	Opening Size [custom]	Opening Size [custom]
Essentra Access Solutions EXWHC2-250-01	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	0.25 in	6.35 mm	0.394 in	10 mm	0.827 in	21 mm	Clip P-Type	Fastener	Locking Round	#6	M4	1 mm	0.039 in	0.157 in	4 mm
Essentra Access Solutions EXWHC2-500-01	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural	0.5 in		0.394 in	10 mm			Clip P-Type	Fastener	Locking Round	#6	M4	1.6 mm	0.063 in	0.157 in	4 mm	30 mm	1.181 in	12.7 mm
Essentra Access Solutions EXWHC2-750-01	UL94 V-2	Polyamide (PA66) Nylon 6/6	Natural							Clip P-Type	Fastener	Locking Round	#6	M4	1.78 mm	0.07 in	0.157 in	4 mm	34.98 mm	1.377 "		0.708 in	17.98 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, P-Type Natural Fastener 0.500" (12.70mm)
