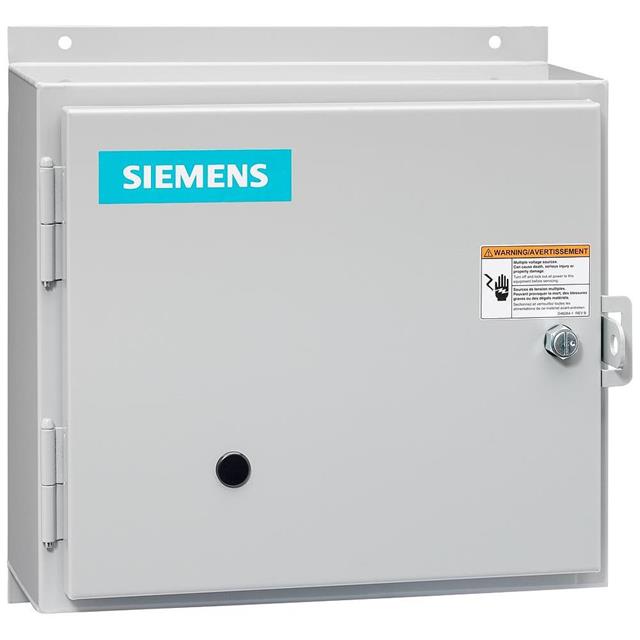

40DP120A

Active

Siemens

CONTACTOR,FVNR,S1,1PH,120/240VAC

Search across all available documentation for this part.

Active

Siemens

CONTACTOR,FVNR,S1,1PH,120/240VAC

Technical Specifications

Parameters and characteristics for this part

Part	Coil Power	Operate Time	Contact Form	Release Time	Coil Voltage [Min]	Coil Voltage [Max]	Features	Switching Voltage	Contact Material	Termination Style	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Must Operate Voltage	Coil Voltage
Siemens 40DP320A	218 VA	29 ms	3PST-NO (3 Form A)	24 ms	110 VAC/DC	240 VAC	Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount
Siemens 40DP22BC	218 VA	29 ms	4PST-NO (4 Form A)	24 ms	220 VAC	480 VAC/DC	Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount
Siemens 40DP22BD	218 VA	29 ms	4PST-NO (4 Form A)	24 ms			Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount	176.8 VAC	208 VAC
Siemens 40DP32BG	218 VA	29 ms	3PST-NO (3 Form A)	24 ms	220 VAC	240 VAC	Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount
Siemens 40DP120A	218 VA	29 ms	DPST-NO (2 Form A)	24 ms	110 VAC/DC	240 VAC	Auxiliary Contacts	240 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount
Siemens 40DP22BF	218 VA	29 ms	4PST-NO (4 Form A)	24 ms			Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount	102 VAC	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 806.35

General part information

CONTACTOR,FVNR,S1,1PH,120/240VAC

Technical documentation and resources
