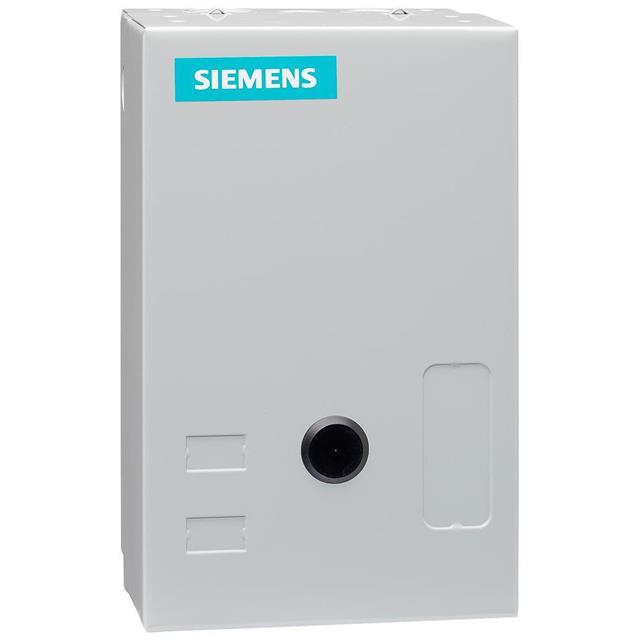

40DP22BD

Active

Siemens

CONTACTOR, SZ1,4P,N1,208V,

Search across all available documentation for this part.

Active

Siemens

CONTACTOR, SZ1,4P,N1,208V,

Technical Specifications

Parameters and characteristics for this part

Part	Coil Power	Operate Time	Contact Form	Release Time	Coil Voltage [Min]	Coil Voltage [Max]	Features	Switching Voltage	Contact Material	Termination Style	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Must Operate Voltage	Coil Voltage
Siemens 40DP320A	218 VA	29 ms	3PST-NO (3 Form A)	24 ms	110 VAC/DC	240 VAC	Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount
Siemens 40DP22BC	218 VA	29 ms	4PST-NO (4 Form A)	24 ms	220 VAC	480 VAC/DC	Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount
Siemens 40DP22BD	218 VA	29 ms	4PST-NO (4 Form A)	24 ms			Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount	176.8 VAC	208 VAC
Siemens 40DP32BG	218 VA	29 ms	3PST-NO (3 Form A)	24 ms	220 VAC	240 VAC	Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount
Siemens 40DP120A	218 VA	29 ms	DPST-NO (2 Form A)	24 ms	110 VAC/DC	240 VAC	Auxiliary Contacts	240 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount
Siemens 40DP22BF	218 VA	29 ms	4PST-NO (4 Form A)	24 ms			Auxiliary Contacts	600 VAC	Copper	Screw Terminal	27 A	-20 C	40 °C	Chassis Mount	102 VAC	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 634.43

General part information

CONTACTOR, SZ1,4P,N1,208V,

Technical documentation and resources
