UF220APA12-H2C2A-B1

Active

Mechatronics Fan Group

FAN IMP 223X71MM 115VAC TACH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet +1

UF220APA12-H2C2A-B1

Active

Mechatronics Fan Group

FAN IMP 223X71MM 115VAC TACH

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 92.19

Description

General part information

UF220 Series

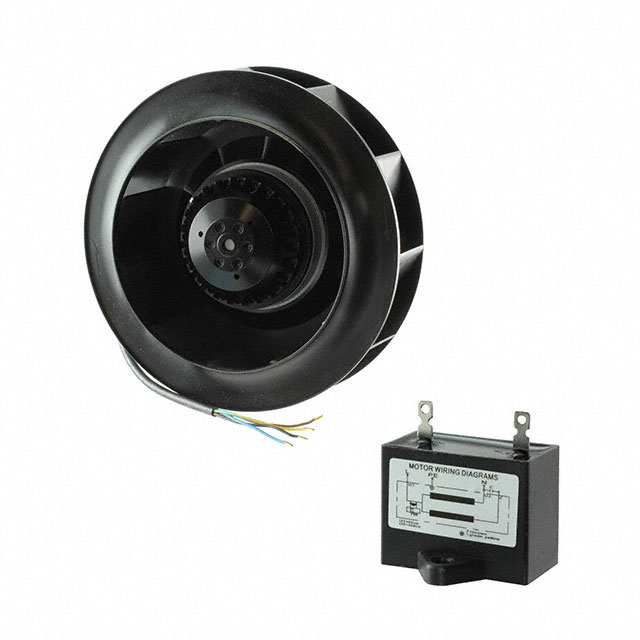

Fan Motorized Impellers 115VAC Round - 223mm Dia Ball 530.0 CFM (14.84m³/min) 4 Wire Leads

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Blowers & Impellers Part Numbering

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF220APA12-H2C2A-B1	UF220 Series

Air Flow	530 CFM	434 - 530 CFM
Air Flow	14.84 mł/min	12.15 - 14.84 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	800 mA	390 - 800 mA
Fan Type	Motorized Impellers	Motorized Impellers
Features	Speed Sensor (Tach), Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach)
Material - Blade	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material - Frame	Aluminum	Aluminum
Noise	70 dB(A)	65 - 70 dB
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	117 W	117 W
RPM	2650 RPM	2650 RPM
Size / Dimension [diameter]	223 mm	223 - 259 mm
Static Pressure	423.5 Pa	423.5 Pa
Static Pressure	1.7 in H2O	1.7 in H2O
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	115 VAC	115 - 230 VAC
Weight	3.2 lbs	3.2 - 4.1 lbs
Weight	1.5 kg	1.5 - 1.9 kg
Width	-	97.8 mm
Width [x]	71 mm	71 mm

UF220 Series

IMPELLER 223X71MM 115VAC RING

Part	Termination	Air Flow	Air Flow	Weight	Weight	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Static Pressure	Static Pressure	Material - Blade	Approval Agency	Noise	RPM	Bearing Type	Material - Frame	Size / Dimension [diameter]	Power (Watts)	Current Rating (Amps)	Features	Voltage - Rated	Width [x]
Mechatronics Fan Group UF220APA12-H2C2F	4 Wire Leads	12.15 m³/min	434 CFM	1.9 kg	4.1 lbs	97.8 mm	50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	65 dB	2650 RPM	Ball	Aluminum	259 mm	117 W	800 mA	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	115 VAC
Mechatronics Fan Group UF220APA12-H2C2A-B1	4 Wire Leads	14.84 mł/min	530 CFM	1.5 kg	3.2 lbs		50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	70 dB(A)	2650 RPM	Ball	Aluminum	223 mm	117 W	800 mA	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	115 VAC	71 mm
Mechatronics Fan Group UF220APA12-H2C2A	4 Wire Leads	14.84 mł/min	530 CFM	1.5 kg	3.2 lbs		50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	70 dB(A)	2650 RPM	Ball	Aluminum	223 mm	117 W	800 mA	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	115 VAC	71 mm
Mechatronics Fan Group UF220APA23-H2C2A	4 Wire Leads	14.84 mł/min	530 CFM	1.5 kg	3.2 lbs		50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	70 dB(A)	2650 RPM	Ball	Aluminum	223 mm	117 W	390 mA	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	230 VAC	71 mm
Mechatronics Fan Group UF220APA23-H2C2F	4 Wire Leads	12.15 m³/min	434 CFM	1.9 kg	4.1 lbs	97.8 mm	50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	65 dB	2650 RPM	Ball	Aluminum	259 mm	117 W	390 mA	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	230 VAC
