UF220APA23-H2C2F

Active

Mechatronics Fan Group

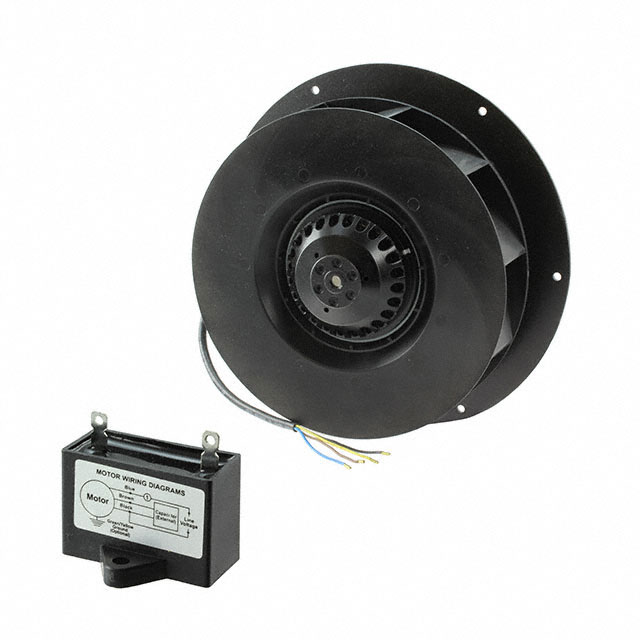

IMPELLER 223X71MM 230VAC RING

Deep-Dive with AI

DocumentsDatasheet Blowers & Impellers Part Numbering +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 83.12

Description

General part information

UF220 Series

Fan Motorized Impellers 230VAC Round - 259mm Dia Ball 434.0 CFM (12.15m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Datasheet

Blowers & Impellers Part Numbering

Datasheet

Backward Curved Impellers

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF220APA23-H2C2F	UF220 Series

Air Flow	12.15 m³/min	12.15 - 14.84 m³/min
Air Flow	434 CFM	434 - 530 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	390 mA	390 - 800 mA
Fan Type	Motorized Impellers	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach)
Material - Blade	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material - Frame	Aluminum	Aluminum
Noise	65 dB	65 - 70 dB
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	117 W	117 W
RPM	2650 RPM	2650 RPM
Size / Dimension [diameter]	259 mm	223 - 259 mm
Static Pressure	423.5 Pa	423.5 Pa
Static Pressure	1.7 in H2O	1.7 in H2O
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	230 VAC	115 - 230 VAC
Weight	1.9 kg	1.5 - 1.9 kg
Weight	4.1 lbs	3.2 - 4.1 lbs
Width	-	71 mm
Width [y]	97.8 mm	97.8 mm

UF220 Series

IMPELLER 223X71MM 115VAC RING

Part	Termination	Air Flow	Air Flow	Weight	Weight	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Static Pressure	Static Pressure	Material - Blade	Approval Agency	Noise	RPM	Bearing Type	Material - Frame	Size / Dimension [diameter]	Power (Watts)	Current Rating (Amps)	Features	Voltage - Rated	Width [x]
Mechatronics Fan Group UF220APA12-H2C2F	4 Wire Leads	12.15 m³/min	434 CFM	1.9 kg	4.1 lbs	97.8 mm	50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	65 dB	2650 RPM	Ball	Aluminum	259 mm	117 W	800 mA	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	115 VAC
Mechatronics Fan Group UF220APA12-H2C2A-B1	4 Wire Leads	14.84 mł/min	530 CFM	1.5 kg	3.2 lbs		50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	70 dB(A)	2650 RPM	Ball	Aluminum	223 mm	117 W	800 mA	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	115 VAC	71 mm
Mechatronics Fan Group UF220APA12-H2C2A	4 Wire Leads	14.84 mł/min	530 CFM	1.5 kg	3.2 lbs		50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	70 dB(A)	2650 RPM	Ball	Aluminum	223 mm	117 W	800 mA	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	115 VAC	71 mm
Mechatronics Fan Group UF220APA23-H2C2A	4 Wire Leads	14.84 mł/min	530 CFM	1.5 kg	3.2 lbs		50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	70 dB(A)	2650 RPM	Ball	Aluminum	223 mm	117 W	390 mA	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	230 VAC	71 mm
Mechatronics Fan Group UF220APA23-H2C2F	4 Wire Leads	12.15 m³/min	434 CFM	1.9 kg	4.1 lbs	97.8 mm	50 °C	-40 °C	-40 °C	50 °C	Motorized Impellers	423.5 Pa	1.7 in H2O	Nylon, Polyamide (PA)	CE, cUL, TUV, UL	65 dB	2650 RPM	Ball	Aluminum	259 mm	117 W	390 mA	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	230 VAC
