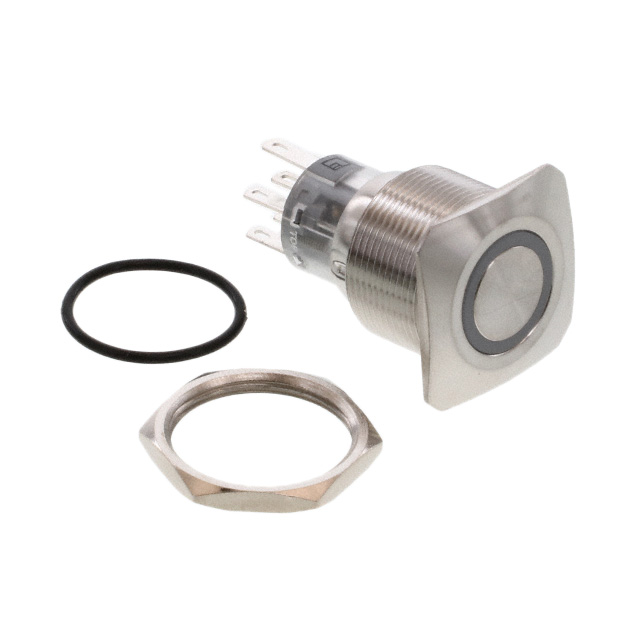

PVS7F2HSS331

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; DPDT; 2A/24VDC; IP65; ON-(ON)

Deep-Dive with AI

Search across all available documentation for this part.

PVS7F2HSS331

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; DPDT; 2A/24VDC; IP65; ON-(ON)

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PVS7F2HSS331

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	24 V

PVS7 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Circuit	Termination Style	Termination Style	Termination Style	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Color - Actuator/Cap	Switch Function	Electrical Life	Actuator Marking	Voltage Rating - DC	Illumination Type, Color	Actuator Type	Type	Illumination Voltage (Nominal)
E-Switch PVS7F2GSS331	55 °C	-20 C	IP65 - Dust Tight Water Resistant	DPDT	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	22 mm	2 A	Silver	On-On	50000 Cycles	No Marking	24 V	Green LED	Button Flush Round	Anti-Vandal Illuminated
E-Switch PVS7F2HSS335M01	55 °C	-20 C	IP65 - Dust Tight Water Resistant	DPDT	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	22 mm	2 A	Silver	On-Mom	50000 Cycles	Power Symbol	24 V	Green LED	Button Flush Round	Anti-Vandal Illuminated	24 V
E-Switch PVS7F2HSS341	55 °C	-20 C	IP65 - Dust Tight Water Resistant	DPDT	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	22 mm	2 A	Silver	On-Mom	50000 Cycles	No Marking	24 V	Blue LED	Button Flush Round	Anti-Vandal Illuminated
E-Switch PVS7F2GSS311	55 °C	-20 C	IP65 - Dust Tight Water Resistant	DPDT	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	22 mm	2 A	Silver	On-On	50000 Cycles	No Marking	24 V	LED Red	Button Flush Round	Anti-Vandal Illuminated
E-Switch PVS7F2GSS341	55 °C	-20 C	IP65 - Dust Tight Water Resistant	DPDT	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	22 mm	2 A	Silver	On-On	50000 Cycles	No Marking	24 V	Blue LED	Button Flush Round	Anti-Vandal Illuminated
E-Switch PVS7F2BSS335	55 °C	-20 C	IP65 - Dust Tight Water Resistant	SPDT	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	22 mm	2 A	Silver	On-Mom	50000 Cycles	No Marking	24 V	Green LED	Button Flush Round	Anti-Vandal Illuminated	24 V
E-Switch PVS7F2HSS331	55 °C	-20 C	IP65 - Dust Tight Water Resistant	DPDT	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	22 mm	2 A	Silver	On-Mom	50000 Cycles	No Marking	24 V	Green LED	Button Flush Round	Anti-Vandal Illuminated
E-Switch PVS7F2HSS331M01	55 °C	-20 C	IP65 - Dust Tight Water Resistant	DPDT	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	22 mm	2 A	Silver	On-Mom	50000 Cycles	Power Symbol	24 V	Green LED	Button Flush Round	Anti-Vandal Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.55

Description

General part information

PVS7 Series

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
