45130-010030-7700/30-C-36

Unknown

3M (TC)

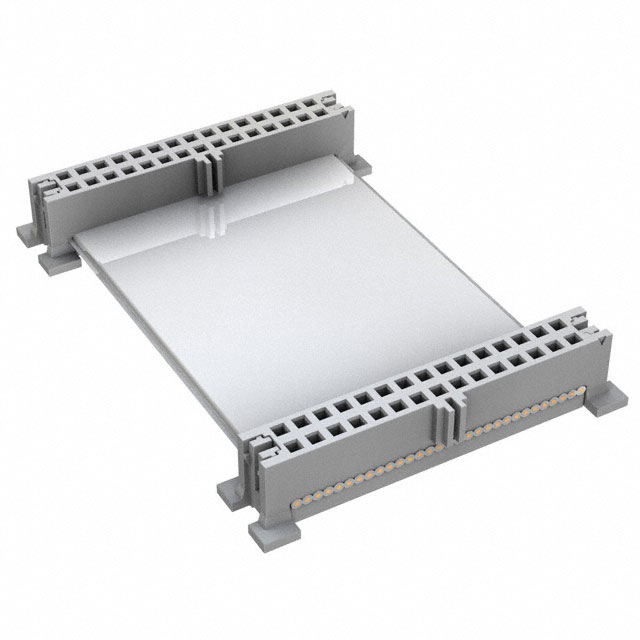

CABLE ASSY 30 POS 36" PINOUT-C

Deep-Dive with AI

Search across all available documentation for this part.

Documents451 Ribbon Cable Socket Series Drawing 451, 452 Socket/Header Series +1

45130-010030-7700/30-C-36

Unknown

3M (TC)

CABLE ASSY 30 POS 36" PINOUT-C

Deep-Dive with AI

Documents451 Ribbon Cable Socket Series Drawing 451, 452 Socket/Header Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45130-010030-7700/30-C-36

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	30
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

45130 Series

Part	Contact Finish	Cable Termination	Length	Length	Length	Number of Rows	Number of Positions	Pitch - Cable [x]	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length
3M (TC) 45130-010030-7700/30-F-06	Gold	IDC	152.4 mm	6 "	0.5 '	2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket Reversed	0.05 in	1.27 mm
3M (TC) 45130-010030-7700/30-A-24	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Cable	0.05 in	1.27 mm	608.08 mm	2 '
3M (TC) 45130-010030-7700/30-G-12	Gold	IDC	304.8 mm			2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket	0.05 in	1.27 mm			1 ft
3M (TC) 45130-010030-7700/30-B-12	Gold	IDC	304.8 mm			2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Cable	0.05 in	1.27 mm			1 ft
3M (TC) 45130-010030-7700/30-B-36	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Cable	0.05 in	1.27 mm	914.4 mm	3 ft
3M (TC) 45130-010030-7700/30-B-24	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Cable	0.05 in	1.27 mm	608.08 mm	2 '
3M (TC) 45130-010030-7700/30-H-36	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket	0.05 in	1.27 mm	914.4 mm	3 ft
3M (TC) 45130-010030-7700/30-C-36	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket	0.05 in	1.27 mm	914.4 mm	3 ft
3M (TC) 45130-010030-7700/30-D-12	Gold	IDC	304.8 mm			2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket Reversed	0.05 in	1.27 mm			1 ft
3M (TC) 45130-010030-7700/30-G-24	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket	0.05 in	1.27 mm	608.08 mm	2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.05

Description

General part information

45130 Series

30 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)

Documents

Technical documentation and resources

451 Ribbon Cable Socket Series Drawing

Datasheet

451, 452 Socket/Header Series

Datasheet
