45130-010030-7700/30-F-06

Unknown

3M (TC)

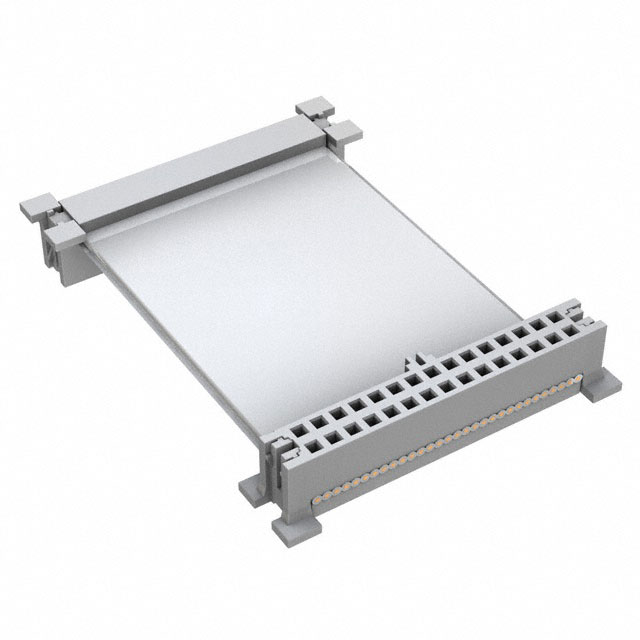

CABLE ASSY 30 POS 6" PINOUT-F

Deep-Dive with AI

Search across all available documentation for this part.

Documents451, 452 Socket/Header Series 451 Ribbon Cable Socket Series Drawing +1

45130-010030-7700/30-F-06

Unknown

3M (TC)

CABLE ASSY 30 POS 6" PINOUT-F

Deep-Dive with AI

Documents451, 452 Socket/Header Series 451 Ribbon Cable Socket Series Drawing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45130-010030-7700/30-F-06

Cable Termination	IDC
Connector Type	Socket to Socket, Reversed
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	30
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

45130 Series

Part	Contact Finish	Cable Termination	Length	Length	Length	Number of Rows	Number of Positions	Pitch - Cable [x]	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length
3M (TC) 45130-010030-7700/30-F-06	Gold	IDC	152.4 mm	6 "	0.5 '	2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket Reversed	0.05 in	1.27 mm
3M (TC) 45130-010030-7700/30-A-24	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Cable	0.05 in	1.27 mm	608.08 mm	2 '
3M (TC) 45130-010030-7700/30-G-12	Gold	IDC	304.8 mm			2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket	0.05 in	1.27 mm			1 ft
3M (TC) 45130-010030-7700/30-B-12	Gold	IDC	304.8 mm			2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Cable	0.05 in	1.27 mm			1 ft
3M (TC) 45130-010030-7700/30-B-36	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Cable	0.05 in	1.27 mm	914.4 mm	3 ft
3M (TC) 45130-010030-7700/30-B-24	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Cable	0.05 in	1.27 mm	608.08 mm	2 '
3M (TC) 45130-010030-7700/30-H-36	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket	0.05 in	1.27 mm	914.4 mm	3 ft
3M (TC) 45130-010030-7700/30-C-36	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket	0.05 in	1.27 mm	914.4 mm	3 ft
3M (TC) 45130-010030-7700/30-D-12	Gold	IDC	304.8 mm			2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket Reversed	0.05 in	1.27 mm			1 ft
3M (TC) 45130-010030-7700/30-G-24	Gold	IDC				2	30	0.025 in	0.64 mm	Unshielded	0.76 Ám	30 Áin	Polarizing Key	Socket to Socket	0.05 in	1.27 mm	608.08 mm	2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.82

Description

General part information

45130 Series

30 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

451, 452 Socket/Header Series

Datasheet

451 Ribbon Cable Socket Series Drawing

Datasheet
