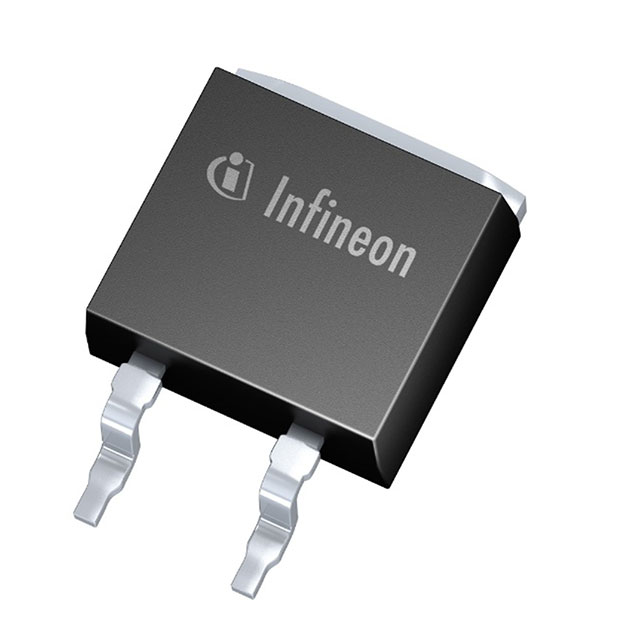

AIDK08S65C5ATMA1

Active

Infineon Technologies

THE 5TH GENERATION COOLSIC™ AUTOMOTIVE SCHOTTKY DIODE AND REPRESENTS INFINEON LEADING EDGE TECHNOLOGY FOR SILICON CARBIDE SCHOTTKY BARRIER DIODES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AIDK08S65C5ATMA1

Active

Infineon Technologies

THE 5TH GENERATION COOLSIC™ AUTOMOTIVE SCHOTTKY DIODE AND REPRESENTS INFINEON LEADING EDGE TECHNOLOGY FOR SILICON CARBIDE SCHOTTKY BARRIER DIODES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AIDK08S65C5ATMA1

Capacitance @ Vr, F	248 pF
Current - Average Rectified (Io)	8 A
Current - Reverse Leakage @ Vr	50 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Qualification	AEC-Q101
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	PG-TO263-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

AIDK08 Series

Part	Qualification	Grade	Package / Case	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Capacitance @ Vr, F	Technology
Infineon Technologies AIDK08S65C5ATMA1	AEC-Q101	Automotive	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	PG-TO263-2	650 V	No Recovery Time	8 A	1.7 V	50 µA	Surface Mount	-40 °C	175 ░C	0 ns	248 pF	SiC (Silicon Carbide) Schottky

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.26
		10	$ 4.41
		100	$ 3.57
		500	$ 3.17
	Digi-Reel®	1	$ 5.26
		10	$ 4.41
		100	$ 3.57
		500	$ 3.17
	Tape & Reel (TR)	1000	$ 2.46
Newark	Each (Supplied on Cut Tape)	1	$ 4.37
		10	$ 3.30
		25	$ 3.05
		50	$ 2.81
		100	$ 2.56
		250	$ 2.56
		500	$ 2.55
		1000	$ 2.55

Description

General part information

AIDK08 Series

Thanks to a compact design and a technology based on thin wafers, this family of products shows improved efficiency over all load conditions resulting from both its thermalcharacteristics and low figure of merit (Qc x Vf). This product family has been designed to complement Infineon’s IGBT and CoolMOS™ portfolio. This ensures meeting the most stringent application requirements inthe 650V voltage class.
