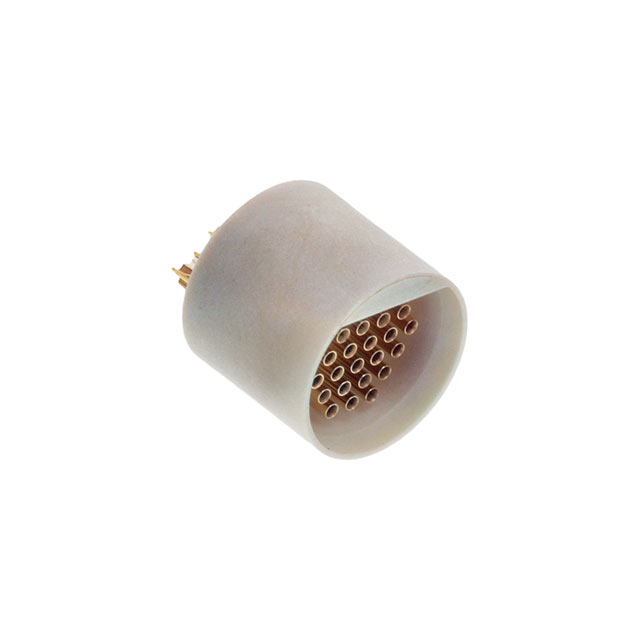

A22013-001

Active

Omnetics

CONN RCPT FMALE 27P SOLDER CUP

Search across all available documentation for this part.

Active

Omnetics

CONN RCPT FMALE 27P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A22013-001	MCS-27 Series

1st Connector Gender	-	Female Sockets
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Number of Positions Loaded	-	All
1st Connector Orientation	-	Keyed
1st Connector Type	-	Receptacle
2nd Connector Type	-	Wire Leads
Assembly Configuration	-	Standard
Cable Material	-	Polytetrafluoroethylene (PTFE)
Cable Type	-	Individual
Color	Natural	Natural, Multiple
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	27	27
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Shielding	Unshielded	Unshielded

CONN RCPT FMALE 27P SOLDER CUP

Part	Number of Positions	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Orientation	Primary Material	Color	Shell Material	Connector Type	Current Rating (Amps)	Insert Material	Mounting Type	Contact Finish - Mating	Contact Material	Cable Type	Cable Material	1st Connector Gender	Assembly Configuration	1st Connector Number of Positions Loaded	Length [x]	Length [x]	1st Connector Type	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Mounting Type
Omnetics A22013-001	27	Unshielded	-55 °C	125 °C	1.27 µm	50 µin	Push-Pull	Keyed	Plastic	Natural	Liquid Crystal Polymer (LCP)	Receptacle, Female Sockets	3 A	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Gold	Copper Alloy
Omnetics A22009-001		Unshielded								Multiple								Individual	Polytetrafluoroethylene (PTFE)	Female Sockets	Standard	All	457.2 mm	1.5 ft	Receptacle	Keyed	Wire Leads	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

27 Position Circular Connector Receptacle, Female Sockets Solder Cup
