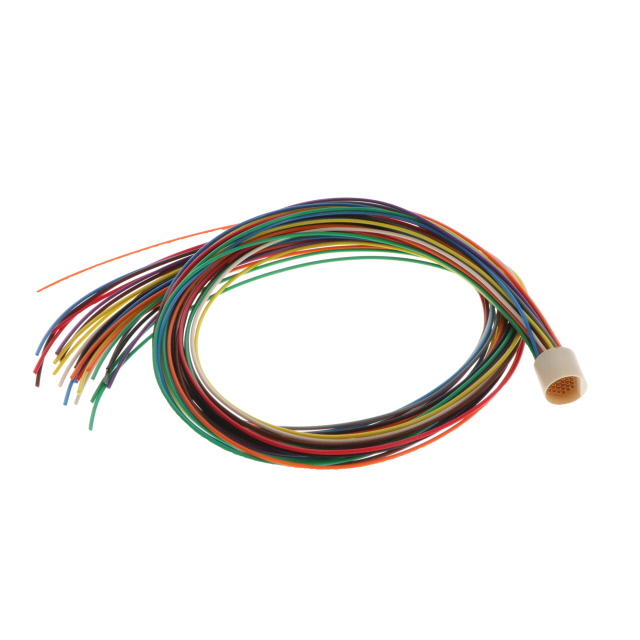

A22009-001

Active

Omnetics

CIRC CBL 27POS RCPT TO WIRE 1.5'

Search across all available documentation for this part.

Active

Omnetics

CIRC CBL 27POS RCPT TO WIRE 1.5'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.50' (457.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A22009-001	MCS-27 Series

1st Connector Gender	Female Sockets	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Type	Receptacle	Receptacle
2nd Connector Type	Wire Leads	Wire Leads
Assembly Configuration	Standard	Standard
Cable Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Cable Type	Individual	Individual
Color	Multiple	Natural, Multiple
Connector Type	-	Receptacle, Female Sockets
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	1.27 µm
Contact Finish Thickness - Mating	-	50 µin
Contact Material	-	Copper Alloy
Current Rating (Amps)	-	3 A
Fastening Type	-	Push-Pull
Insert Material	-	Liquid Crystal Polymer (LCP)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	-	27
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Orientation	-	Keyed
Primary Material	-	Plastic
Shell Material	-	Liquid Crystal Polymer (LCP)
Shielding	Unshielded	Unshielded

CONN RCPT FMALE 27P SOLDER CUP

Part	Number of Positions	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Orientation	Primary Material	Color	Shell Material	Connector Type	Current Rating (Amps)	Insert Material	Mounting Type	Contact Finish - Mating	Contact Material	Cable Type	Cable Material	1st Connector Gender	Assembly Configuration	1st Connector Number of Positions Loaded	Length [x]	Length [x]	1st Connector Type	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Mounting Type
Omnetics A22013-001	27	Unshielded	-55 °C	125 °C	1.27 µm	50 µin	Push-Pull	Keyed	Plastic	Natural	Liquid Crystal Polymer (LCP)	Receptacle, Female Sockets	3 A	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Gold	Copper Alloy
Omnetics A22009-001		Unshielded								Multiple								Individual	Polytetrafluoroethylene (PTFE)	Female Sockets	Standard	All	457.2 mm	1.5 ft	Receptacle	Keyed	Wire Leads	Free Hanging (In-Line)
