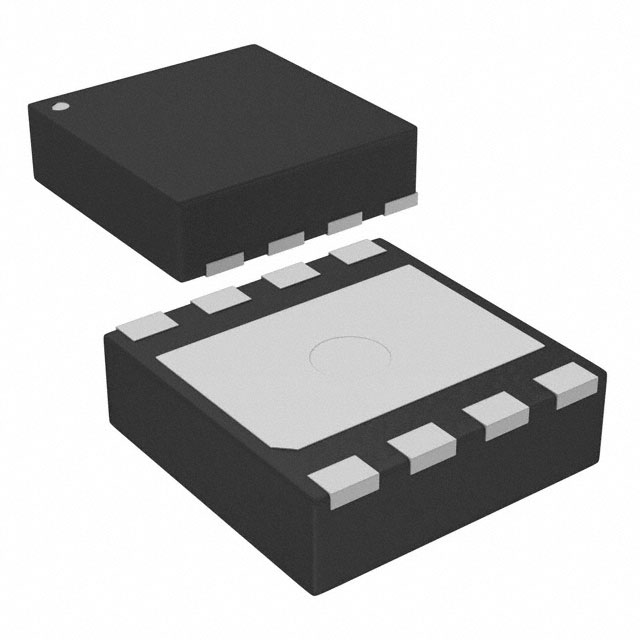

TPS2557QDRBTQ1

Active

Texas Instruments

AUTOMOTIVE 0.5-5A ADJUSTABLE ILIMIT, 2.5-6.5V, 22M&OMEGA; USB POWER SWITCH, ACTIVE-HIGH 8-SON -40 TO 125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUsing the TPS2556/7EVM TPS2556-Q1, TPS2557-Q1 Functional Safety FIT Rate and Failure Mode Distribution (Rev. A)+5

TPS2557QDRBTQ1

Active

Texas Instruments

AUTOMOTIVE 0.5-5A ADJUSTABLE ILIMIT, 2.5-6.5V, 22M&OMEGA; USB POWER SWITCH, ACTIVE-HIGH 8-SON -40 TO 125

Deep-Dive with AI

DocumentsUsing the TPS2556/7EVM TPS2556-Q1, TPS2557-Q1 Functional Safety FIT Rate and Failure Mode Distribution (Rev. A)+5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TPS2557QDRBTQ1	TPS2557-Q1 Series

Current - Output (Max) [Max]	5 A	5 A
Fault Protection	Over Temperature, Current Limiting (Adjustable), UVLO	Over Temperature, Current Limiting (Adjustable), UVLO
Features	Slew Rate Controlled, Status Flag	Slew Rate Controlled, Status Flag
Grade	Automotive	Automotive
Input Type	Non-Inverting	Non-Inverting
Interface	On/Off	On/Off
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	High Side	High Side
Output Type	N-Channel	N-Channel
Package / Case	8-VDFN Exposed Pad	8-VDFN Exposed Pad
Qualification	AEC-Q100	AEC-Q100
Ratio - Input:Output [custom]	1:1	1:1
Rds On (Typ)	22 mOhm	22 mOhm
Supplier Device Package	8-SON (3x3)	8-SON (3x3)
Switch Type	General Purpose	General Purpose
Voltage - Load [Max]	6.5 V	6.5 V
Voltage - Load [Min]	2.5 V	2.5 V
Voltage - Supply (Vcc/Vdd)	Not Required	Not Required

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DigiKey	Digi-Reel®, Cut Tape (CT), Tape & Reel (TR)	1	$ 1.76
		10	$ 1.29
		25	$ 1.18
		100	$ 1.05
		250	$ 0.99
		500	$ 0.95
		750	$ 0.93
		1250	$ 0.91
		1750	$ 0.90
		2500	$ 0.89
		6250	$ 0.86
Digikey	Cut Tape (CT)	1	$ 1.90
		10	$ 1.71
		25	$ 1.61
		100	$ 1.37
	Digi-Reel®	1	$ 1.90
		10	$ 1.71
		25	$ 1.61
		100	$ 1.37
	Tape & Reel (TR)	250	$ 1.29
		500	$ 1.13
		1250	$ 0.93
		2500	$ 0.87
		6250	$ 0.84
Mouser Electronics	N/A	1	$ 1.76
		10	$ 1.18
		100	$ 1.05
		250	$ 0.96
		500	$ 0.85
		1000	$ 0.80
Texas Instruments	SMALL T&R	1	$ 1.58
		100	$ 1.21
		250	$ 0.89
		1000	$ 0.64
Win Source Electronics	N/A	60	$ 0.85
		145	$ 0.70
		225	$ 0.67
		310	$ 0.65
		400	$ 0.63
		535	$ 0.57

TPS2557-Q1 Series

Automotive 0.5-5A adjustable ILIMIT, 2.5-6.5V, 22mΩ USB power switch, active-high

Part	Rds On (Typ)	Fault Protection	Current - Output (Max) [Max]	Output Configuration	Qualification	Ratio - Input:Output [custom]	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply (Vcc/Vdd)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Grade	Interface	Output Type	Switch Type	Supplier Device Package	Features	Input Type	Package / Case
Texas Instruments TPS2557QDRBRQ1 The TPS2556-Q1 and TPS2557-Q1 power-distribution switches are specialized for automotive applications which require precision current limiting or capacity to handle heavy capacitive loads and short circuits. These devices offer a programmable current-limit threshold between 500 mA and 5 A (typical) via an external resistor. Control of the power-switch rise and fall times minimizes current surges during turnon or turnoff. TPS2556-Q1 and TPS2557-Q1 devices limit the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. TheFAULTlogic output asserts low during overcurrent and overtemperature conditions. Use with the TPS2511-Q1 or TPS2513A-Q1 for a low-loss, automotive-qualified, USB charging-port solution capable of charging all of today’s popular phones and tablets. The TPS2556-Q1 and TPS2557-Q1 power-distribution switches are specialized for automotive applications which require precision current limiting or capacity to handle heavy capacitive loads and short circuits. These devices offer a programmable current-limit threshold between 500 mA and 5 A (typical) via an external resistor. Control of the power-switch rise and fall times minimizes current surges during turnon or turnoff. TPS2556-Q1 and TPS2557-Q1 devices limit the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. TheFAULTlogic output asserts low during overcurrent and overtemperature conditions. Use with the TPS2511-Q1 or TPS2513A-Q1 for a low-loss, automotive-qualified, USB charging-port solution capable of charging all of today’s popular phones and tablets.	22 mOhm	Current Limiting (Adjustable), Over Temperature, UVLO	5 A	High Side	AEC-Q100	1:1	6.5 V	2.5 V	Not Required	125 ¯C	-40 °C	Surface Mount	1	Automotive	On/Off	N-Channel	General Purpose	8-SON (3x3)	Slew Rate Controlled, Status Flag	Non-Inverting	8-VDFN Exposed Pad
Texas Instruments TPS2557QDRBTQ1 The TPS2556-Q1 and TPS2557-Q1 power-distribution switches are specialized for automotive applications which require precision current limiting or capacity to handle heavy capacitive loads and short circuits. These devices offer a programmable current-limit threshold between 500 mA and 5 A (typical) via an external resistor. Control of the power-switch rise and fall times minimizes current surges during turnon or turnoff. TPS2556-Q1 and TPS2557-Q1 devices limit the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. TheFAULTlogic output asserts low during overcurrent and overtemperature conditions. Use with the TPS2511-Q1 or TPS2513A-Q1 for a low-loss, automotive-qualified, USB charging-port solution capable of charging all of today’s popular phones and tablets. The TPS2556-Q1 and TPS2557-Q1 power-distribution switches are specialized for automotive applications which require precision current limiting or capacity to handle heavy capacitive loads and short circuits. These devices offer a programmable current-limit threshold between 500 mA and 5 A (typical) via an external resistor. Control of the power-switch rise and fall times minimizes current surges during turnon or turnoff. TPS2556-Q1 and TPS2557-Q1 devices limit the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. TheFAULTlogic output asserts low during overcurrent and overtemperature conditions. Use with the TPS2511-Q1 or TPS2513A-Q1 for a low-loss, automotive-qualified, USB charging-port solution capable of charging all of today’s popular phones and tablets.	22 mOhm	Current Limiting (Adjustable), Over Temperature, UVLO	5 A	High Side	AEC-Q100	1:1	6.5 V	2.5 V	Not Required	125 ¯C	-40 °C	Surface Mount	1	Automotive	On/Off	N-Channel	General Purpose	8-SON (3x3)	Slew Rate Controlled, Status Flag	Non-Inverting	8-VDFN Exposed Pad

Description

General part information

TPS2557-Q1 Series

The TPS2556-Q1 and TPS2557-Q1 power-distribution switches are specialized for automotive applications which require precision current limiting or capacity to handle heavy capacitive loads and short circuits. These devices offer a programmable current-limit threshold between 500 mA and 5 A (typical) via an external resistor. Control of the power-switch rise and fall times minimizes current surges during turnon or turnoff.

TPS2556-Q1 and TPS2557-Q1 devices limit the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. TheFAULTlogic output asserts low during overcurrent and overtemperature conditions.

Use with the TPS2511-Q1 or TPS2513A-Q1 for a low-loss, automotive-qualified, USB charging-port solution capable of charging all of today’s popular phones and tablets.
