857-074-500-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-074-500-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-074-500-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

857-074 Series

...

Part	Material - Insulation	Termination Rows	Flange Feature	Flange Feature	Flange Feature	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions	Termination	Pitch [x]	Pitch [x]	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Mounting Type	Gender	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Material	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 857-074-555-212	Polyphenylene Sulfide (PPS)	2	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Board Edge Straddle Mount	Female	37	37	37	Copper Alloy	Card Extender
EDAC Inc. 857-074-540-212	Polyphenylene Sulfide (PPS)	2	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Wire Wrap	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy
EDAC Inc. 857-074-556-212	Polyphenylene Sulfide (PPS)	2	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Board Edge Straddle Mount	Female	37	37	37	Copper Alloy	Card Extender
EDAC Inc. 857-074-420-202	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded			Tin	Non Specified - Dual Edge			Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy		3.25 mm	0.128 "
EDAC Inc. 857-074-442-202	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded			Tin	Non Specified - Dual Edge			Semi Bellows	74	Wire Wrap	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy		3.25 mm	0.128 "
EDAC Inc. 857-074-422-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening			Tin	Non Specified - Dual Edge			Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy
EDAC Inc. 857-074-455-204	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded			Tin	Non Specified - Dual Edge			Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Board Edge Straddle Mount	Female	37	37	37	Copper Alloy	Card Extender	3.96 mm	0.156 in
EDAC Inc. 857-074-500-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening			Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Solder Eyelet(s)	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy
EDAC Inc. 857-074-456-202	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded			Tin	Non Specified - Dual Edge			Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Board Edge Straddle Mount	Female	37	37	37	Copper Alloy	Card Extender	3.25 mm	0.128 "
EDAC Inc. 857-074-500-201	Polyphenylene Sulfide (PPS)	2				Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Solder Eyelet(s)	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 123.75
Newark	Each	1	$ 148.50
		100	$ 89.59
		250	$ 79.77
		500	$ 69.82
		1000	$ 55.00

Description

General part information

857-074 Series

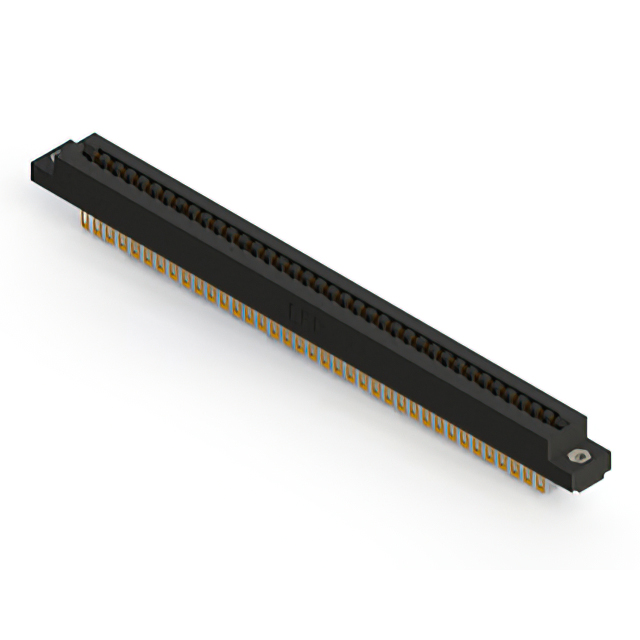

74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
