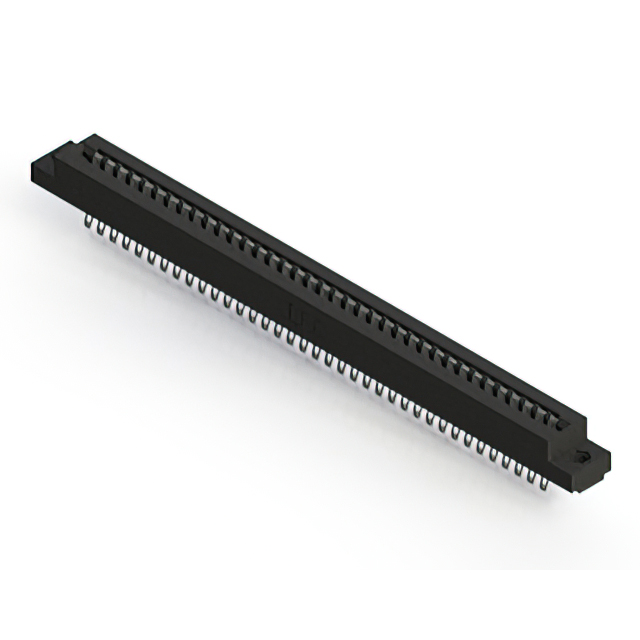

857-074-455-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-074-455-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-074-455-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-074 Series

...

Part	Material - Insulation	Termination Rows	Flange Feature	Flange Feature	Flange Feature	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions	Termination	Pitch [x]	Pitch [x]	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Mounting Type	Gender	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Material	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 857-074-555-212	Polyphenylene Sulfide (PPS)	2	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Board Edge Straddle Mount	Female	37	37	37	Copper Alloy	Card Extender
EDAC Inc. 857-074-540-212	Polyphenylene Sulfide (PPS)	2	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Wire Wrap	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy
EDAC Inc. 857-074-556-212	Polyphenylene Sulfide (PPS)	2	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Board Edge Straddle Mount	Female	37	37	37	Copper Alloy	Card Extender
EDAC Inc. 857-074-420-202	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded			Tin	Non Specified - Dual Edge			Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy		3.25 mm	0.128 "
EDAC Inc. 857-074-442-202	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded			Tin	Non Specified - Dual Edge			Semi Bellows	74	Wire Wrap	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy		3.25 mm	0.128 "
EDAC Inc. 857-074-422-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening			Tin	Non Specified - Dual Edge			Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy
EDAC Inc. 857-074-455-204	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded			Tin	Non Specified - Dual Edge			Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Board Edge Straddle Mount	Female	37	37	37	Copper Alloy	Card Extender	3.96 mm	0.156 in
EDAC Inc. 857-074-500-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening			Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Solder Eyelet(s)	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy
EDAC Inc. 857-074-456-202	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded			Tin	Non Specified - Dual Edge			Semi Bellows	74	Solder	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Board Edge Straddle Mount	Female	37	37	37	Copper Alloy	Card Extender	3.25 mm	0.128 "
EDAC Inc. 857-074-500-201	Polyphenylene Sulfide (PPS)	2				Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Semi Bellows	74	Solder Eyelet(s)	0.156 in	3.96 mm	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	125 °C	-40 °C	2	Through Hole	Female	37	37	37	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 101.99
Newark	Each	1	$ 147.82
		100	$ 87.14
		250	$ 78.68
		500	$ 69.00
		1000	$ 55.00

Description

General part information

857-074 Series

74 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
