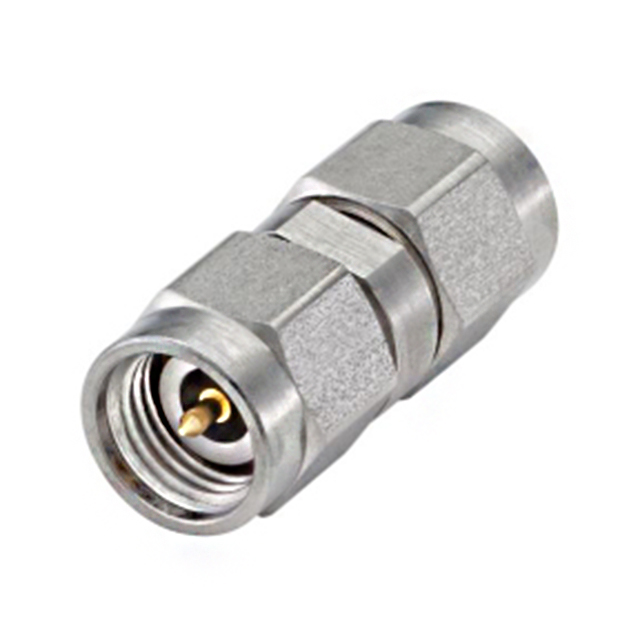

02S121-S20S3

Active

Rosenberger

PRECISION 2.92 CALIBRATION ADAPT

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 CALIBRATION ADAPT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1112.68

General part information

Specialized Calibration Adapter for use with Network Analyzer

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	02S121-S20S3	02S121 Series

Accessory Type	Calibration Adapter	Calibration Adapter
Body Material	-	Stainless Steel
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Connector Style	-	2.92 mm
Connector Type	-	Male Pin, Plug
Contact Termination	-	Solder
Dielectric Material	-	Polystyrene (PS)
For Use With/Related Products	Network Analyzer	Network Analyzer
Frequency - Max	-	40 GHz
Housing Color	-	Silver
Impedance	-	50 Ohms
Mating Cycles	-	500
Mounting Type	-	Free Hanging (In-Line)
Number of Ports	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Shield Termination	-	Solder
Specifications	2.92 Plug, Plug	2.92 Plug, Plug
Type	Specialized	Specialized
Voltage Rating	-	250 VDC

CONN RPC2.92 PLUG STR 50OHM

Part	Frequency - Max [Max]	Shield Termination	Body Material	Contact Termination	Housing Color	Center Contact Plating	Number of Ports	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Center Contact Material	Dielectric Material	Voltage Rating	Connector Type	Impedance	Connector Style	Accessory Type	For Use With/Related Products	Specifications	Type
Rosenberger 02S121-271S3	40 GHz	Solder	Stainless Steel	Solder	Silver	Gold	1	Free Hanging (In-Line)	85 °C	-40 °C	500	Beryllium Copper	Polystyrene (PS)	250 VDC	Male Pin, Plug	50 Ohms	2.92 mm
Rosenberger 02S121-S20S3																		Calibration Adapter	Network Analyzer	2.92 Plug, Plug	Specialized
