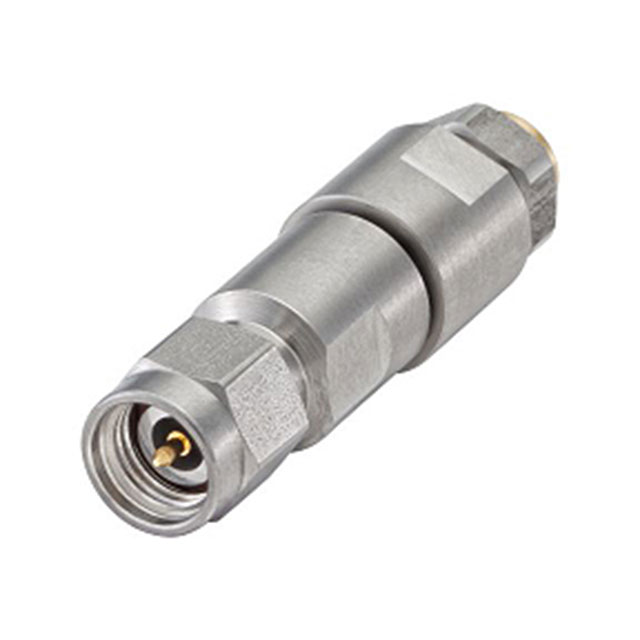

02S121-271S3

Active

Rosenberger

CONN RPC2.92 PLUG STR 50OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC2.92 PLUG STR 50OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02S121-271S3	02S121 Series

Accessory Type	-	Calibration Adapter
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	2.92 mm	2.92 mm
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polystyrene (PS)	Polystyrene (PS)
For Use With/Related Products	-	Network Analyzer
Frequency - Max [Max]	40 GHz	40 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Solder	Solder
Specifications	-	2.92 Plug, Plug
Type	-	Specialized
Voltage Rating	250 VDC	250 VDC

CONN RPC2.92 PLUG STR 50OHM

Part	Frequency - Max [Max]	Shield Termination	Body Material	Contact Termination	Housing Color	Center Contact Plating	Number of Ports	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Center Contact Material	Dielectric Material	Voltage Rating	Connector Type	Impedance	Connector Style	Accessory Type	For Use With/Related Products	Specifications	Type
Rosenberger 02S121-271S3	40 GHz	Solder	Stainless Steel	Solder	Silver	Gold	1	Free Hanging (In-Line)	85 °C	-40 °C	500	Beryllium Copper	Polystyrene (PS)	250 VDC	Male Pin, Plug	50 Ohms	2.92 mm
Rosenberger 02S121-S20S3																		Calibration Adapter	Network Analyzer	2.92 Plug, Plug	Specialized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	5	$ 172.33

General part information

2.92mm Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
