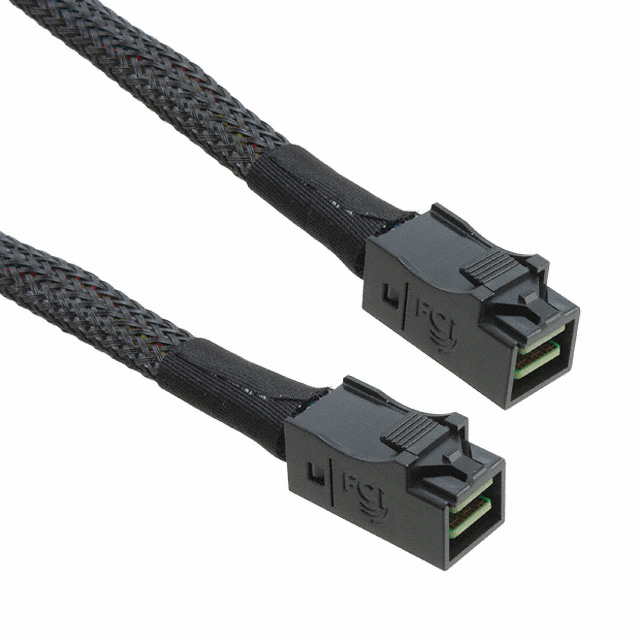

10120087-2050LF

Obsolete

Amphenol ICC (FCI)

CABLE MINISAS M-M 500MM

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CABLE MINISAS M-M 500MM

Technical Specifications

Parameters and characteristics for this part

Specification	10120087-2050LF

Cable Connectors	miniSAS HD 4i
Cable Type	Round
Color	Black
Connector Type	Plug to Plug
Fastening Type	Push-Pull, Latch Lock
Features	Sidebands on Cable
Frequency - Max [Max]	12 Gbps
Gender	Male to Male
Length [x]	1.64 ft
Length [x]	500 mm
Number of Positions	36
Usage	Internal, Controller to Controller
Wire Gauge	30 AWG

Part	Usage	Cable Type	Connector Type	Wire Gauge	Number of Positions	Length	Length	Shielding	Gender	Cable Connectors	Frequency - Max [Max]	Fastening Type	Color	Length [x]	Length [x]	Length [x]	Features
Amphenol ICC (FCI) 10120087-2060LF	Internal Backplane to Controller	Round	Plug to Plug	30 AWG	36	600 mm	1.96 ft	Unshielded	Male to Male	miniSAS HD 4i	12 Gbps	Latch Lock Push-Pull	Black
Amphenol ICC (FCI) 10120087-2030LF	Internal Backplane to Controller	Round	Plug to Plug	30 AWG	36			Unshielded	Male to Male	miniSAS HD 4i	12 Gbps	Latch Lock Push-Pull	Black	11.811 in	300 mm	0.984 '
Amphenol ICC (FCI) 10120087-2080LF	Internal Backplane to Controller	Round	Plug to Plug	30 AWG	36	0.8 m	2.62 ft	Unshielded	Male to Male	miniSAS HD 4i	12 Gbps	Latch Lock Push-Pull	Black
Amphenol ICC (FCI) 10120087-2050LF	Internal Controller to Controller	Round	Plug to Plug	30 AWG	36				Male to Male	miniSAS HD 4i	12 Gbps	Latch Lock Push-Pull	Black		500 mm	1.64 ft	Sidebands on Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

36 Position miniSAS HD 4i Plug to Plug 1.64' (500.00mm) Black
