10120087 Series

Catalog

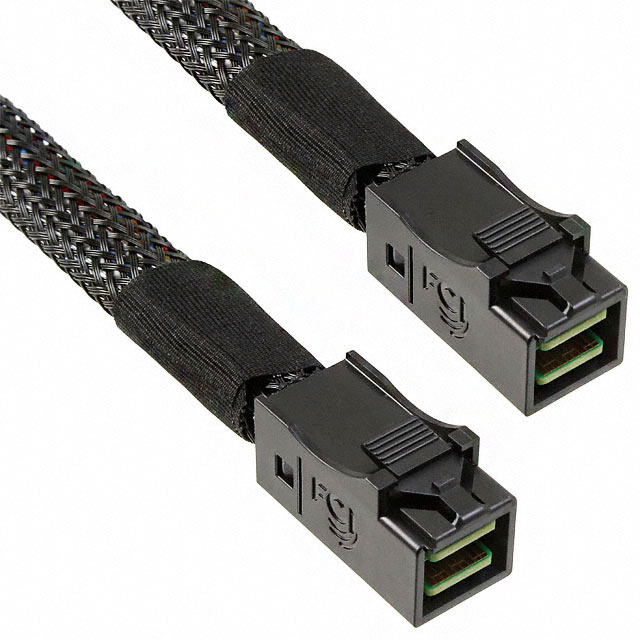

500-2A2F-MINI-SAS HD CABLES

Part	Usage	Cable Type	Connector Type	Wire Gauge	Number of Positions	Length	Length	Shielding	Gender	Cable Connectors	Frequency - Max [Max]	Fastening Type	Color	Length [x]	Length [x]	Length [x]	Features
Amphenol ICC (FCI) 10120087-2060LF	Internal Backplane to Controller	Round	Plug to Plug	30 AWG	36	600 mm	1.96 ft	Unshielded	Male to Male	miniSAS HD 4i	12 Gbps	Latch Lock Push-Pull	Black
Amphenol ICC (FCI) 10120087-2030LF	Internal Backplane to Controller	Round	Plug to Plug	30 AWG	36			Unshielded	Male to Male	miniSAS HD 4i	12 Gbps	Latch Lock Push-Pull	Black	11.811 in	300 mm	0.984 '
Amphenol ICC (FCI) 10120087-2080LF	Internal Backplane to Controller	Round	Plug to Plug	30 AWG	36	0.8 m	2.62 ft	Unshielded	Male to Male	miniSAS HD 4i	12 Gbps	Latch Lock Push-Pull	Black
Amphenol ICC (FCI) 10120087-2050LF	Internal Controller to Controller	Round	Plug to Plug	30 AWG	36				Male to Male	miniSAS HD 4i	12 Gbps	Latch Lock Push-Pull	Black		500 mm	1.64 ft	Sidebands on Cable
