BQ500412RGZR
ActiveFREE POSITIONING, QI-COMPLIANT WIRELESS POWER TRANSMITTER MANAGER
Deep-Dive with AI
Search across all available documentation for this part.
BQ500412RGZR
ActiveFREE POSITIONING, QI-COMPLIANT WIRELESS POWER TRANSMITTER MANAGER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ500412RGZR | BQ500412 Series |
|---|---|---|
| Applications | Wireless Power Transmitter | Wireless Power Transmitter |
| Function | - | Wireless Power Supply/Charging |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Primary Attributes | - | Transmitter |
| Secondary Attributes | - | On-Board LEDs |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 48-VQFN (7x7) | 48-VQFN (7x7) |
| Type | - | Power Management |
| Utilized IC / Part | - | BQ500412 |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 4.27 | |
| Texas Instruments | LARGE T&R | 1 | $ 6.87 | |
| 100 | $ 5.60 | |||
| 250 | $ 4.41 | |||
| 1000 | $ 3.74 | |||
BQ500412 Series
Free Positioning, Qi-Compliant Wireless Power Transmitter Manager
| Part | Package / Case | Mounting Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplied Contents | Primary Attributes | Utilized IC / Part | Type | Function | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ500412RGZR | 48-VFQFN Exposed Pad | Surface Mount | Wireless Power Transmitter | -40 °C | 110 °C | 48-VQFN (7x7) | 3.6 V | 3 V | ||||||
Texas Instruments BQ500412RGZT | 48-VFQFN Exposed Pad | Surface Mount | Wireless Power Transmitter | -40 °C | 110 °C | 48-VQFN (7x7) | 3.6 V | 3 V | ||||||
Texas Instruments BQ500412EVM-584 | Board(s) | Transmitter | BQ500412 | Power Management | Wireless Power Supply/Charging | On-Board LEDs |
Description
General part information
BQ500412 Series
The bq500412 is a Qi-certified value solution that integrates all functions required to control wireless power delivery to a single WPC1.1 compliant receiver. It is WPC1.1 compliant and designed for 12-V systems, or 5-V systems with an optional boost converter, as a wireless power consortium type A6 free positioning transmitter. The bq500412 the surrounding environment for WPC compliant devices to be powered, safely engages the device, receives packet communication from the powered device and manages the power transfer according to WPC1.1 specification. To maximize flexibility in wireless power control applications, Dynamic Power Limiting (DPL) is featured on the bq500412 when used with an optional boost converter from a 5-V input. Dynamic Power Limiting enhances user experience by seamlessly optimizing the usage of power available from limited input supplies. The bq500412 supports both Foreign Object Detection (FOD) and enhanced Parasitic Metal Object Detection (PMOD) for legacy product by continuously monitoring the efficiency of the established power transfer, protecting from power lost due to metal objects misplaced in the wireless power transfer field. Should an abnormal operating condition develop during power transfer, the bq500412 handles it and provides indicator outputs. Comprehensive status and fault monitoring features enable a low cost yet robust, Qi-certified wireless power system design.

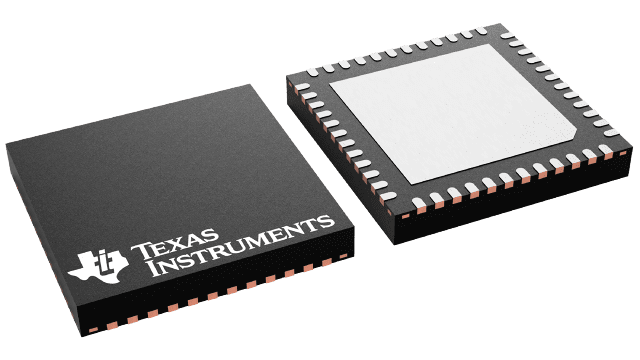

The bq500412 is available in a 48-pin, 7-mm x 7-mm QFN package.
The bq500412 is a Qi-certified value solution that integrates all functions required to control wireless power delivery to a single WPC1.1 compliant receiver. It is WPC1.1 compliant and designed for 12-V systems, or 5-V systems with an optional boost converter, as a wireless power consortium type A6 free positioning transmitter. The bq500412 the surrounding environment for WPC compliant devices to be powered, safely engages the device, receives packet communication from the powered device and manages the power transfer according to WPC1.1 specification. To maximize flexibility in wireless power control applications, Dynamic Power Limiting (DPL) is featured on the bq500412 when used with an optional boost converter from a 5-V input. Dynamic Power Limiting enhances user experience by seamlessly optimizing the usage of power available from limited input supplies. The bq500412 supports both Foreign Object Detection (FOD) and enhanced Parasitic Metal Object Detection (PMOD) for legacy product by continuously monitoring the efficiency of the established power transfer, protecting from power lost due to metal objects misplaced in the wireless power transfer field. Should an abnormal operating condition develop during power transfer, the bq500412 handles it and provides indicator outputs. Comprehensive status and fault monitoring features enable a low cost yet robust, Qi-certified wireless power system design.
