C14610B00850015

Active

Amphenol Tuchel Industrial

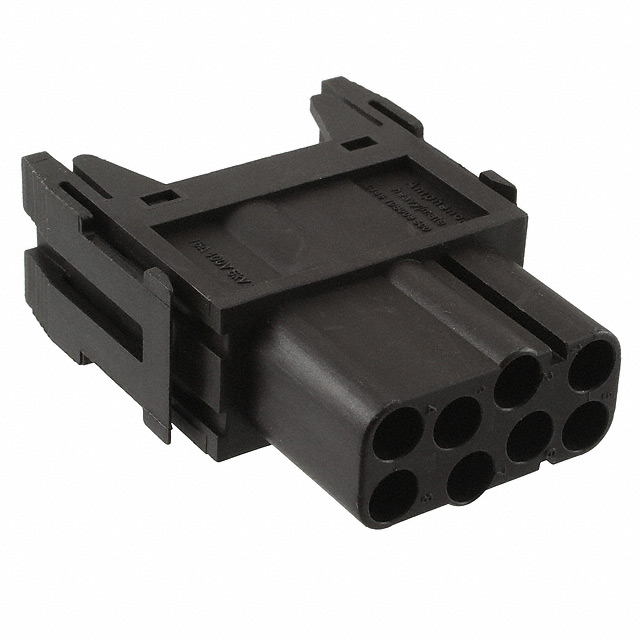

MODULE FEMALE 8POS CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

MODULE FEMALE 8POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B00850015

Color	Black
Connector Type	Module without Contacts
Contact Type	heavy\|mate®, C146 E, EE
Gender	Female
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	400 V

Part	Number of Positions	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Type	Size	Termination Style	Gender	Color	Voltage Rating	Material Flammability Rating	Connector Type
Amphenol Tuchel Industrial C14610B0080002	8	15 A	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	C 16-3 C146 D heavy\|mate® M	A3/4	Crimp	Female	Gray	600 V	UL94 V-0	Insert without Contacts
Amphenol Tuchel Industrial C14610B00850015	8		125 °C	-40 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	heavy\|mate® C146 E EE		Crimp	Female	Black	400 V	UL94 V-0	Module without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Female Module without Contacts Black 8 Position Crimp
