C14610B0080002

Active

Amphenol Tuchel Industrial

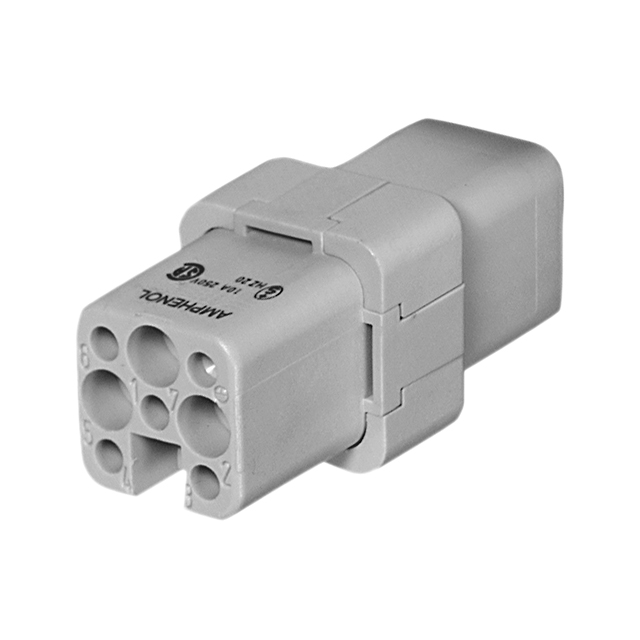

INSERT FEMALE 8POS CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 8POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B0080002

Color	Gray
Connector Type	Insert without Contacts
Contact Type	C146 D, C 16-3, M, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Female
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Termination Style	Crimp
Voltage Rating	600 V

Part	Number of Positions	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Type	Size	Termination Style	Gender	Color	Voltage Rating	Material Flammability Rating	Connector Type
Amphenol Tuchel Industrial C14610B0080002	8	15 A	125 °C	-40 °C	Polybutylene Terephthalate (PBT) Polyester	C 16-3 C146 D heavy\|mate® M	A3/4	Crimp	Female	Gray	600 V	UL94 V-0	Insert without Contacts
Amphenol Tuchel Industrial C14610B00850015	8		125 °C	-40 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	heavy\|mate® C146 E EE		Crimp	Female	Black	400 V	UL94 V-0	Module without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 8 Position Crimp
