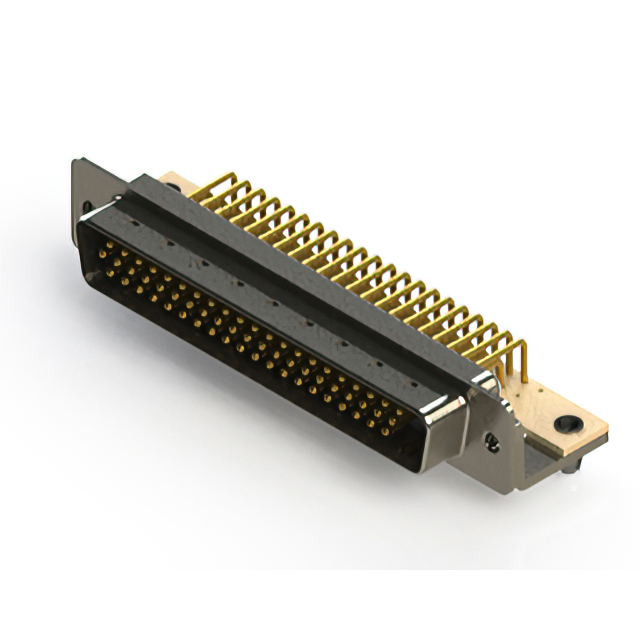

633-M62-263-BN3

Active

EDAC Inc.

633M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

633-M62-263-BN3

Active

EDAC Inc.

633M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	633-M62-263-BN3

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

633-M62 Series

Part	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Material Flammability Rating	Connector Style	Connector Type	Termination	Flange Feature	Contact Finish	Contact Type	Number of Positions	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Material, Finish	Mounting Type	Dielectric Material	Current Rating (Amps)	Color	Contact Finish Thickness
EDAC Inc. 633-M62-363-WN6	Copper Alloy	15 µin	0.38 µm	4	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	Male Pins Plug	Solder	4-40 Board Side	Gold	Signal	62	3	-55 °C	125 °C	Grounding Indents Shielded	Nickel Plated Steel	Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	White
EDAC Inc. 633-M62-263-BN3	Copper Alloy			4	8.89 mm	0.35 in	UL94 V-0	D-Sub	Male Pins Plug	Solder	Housing/Shell (4-40)	Gold	Signal	62	3	-55 °C	125 °C	Board Lock Grounding Indents Shielded	Nickel Plated Steel	Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	Black	Flash
EDAC Inc. 633-M62-363-WT4	Copper Alloy	15 µin	0.38 µm	4	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	Male Pins Plug	Solder	Housing/Shell (4-40)	Gold	Signal	62	3	-55 °C	125 °C	Grounding Indents Shielded		Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	White
EDAC Inc. 633-M62-263-WT2	Copper Alloy			4	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	Male Pins Plug	Solder	Housing/Shell (4-40)	Gold	Signal	62	3	-55 °C	125 °C	Grounding Indents Shielded		Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	White	Flash
EDAC Inc. 633-M62-263-BT5	Copper Alloy			4	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	Male Pins Plug	Solder	4-40	Gold	Signal	62	3	-55 °C	125 °C	Grounding Indents Shielded		Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	Black	Flash
EDAC Inc. 633-M62-663-BN2	Copper Alloy	30 Áin	0.76 Ám	4	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	Male Pins Plug	Solder	Housing/Shell (4-40)	Gold	Signal	62	3	-55 °C	125 °C	Grounding Indents Shielded	Nickel Plated Steel	Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	Black
EDAC Inc. 633-M62-663-WN4	Copper Alloy	30 Áin	0.76 Ám	4	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	Male Pins Plug	Solder	Housing/Shell (4-40)	Gold	Signal	62	3	-55 °C	125 °C	Grounding Indents Shielded	Nickel Plated Steel	Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	White
EDAC Inc. 633-M62-363-BT3	Copper Alloy	15 µin	0.38 µm	4	8.89 mm	0.35 in	UL94 V-0	D-Sub	Male Pins Plug	Solder	Housing/Shell (4-40)	Gold	Signal	62	3	-55 °C	125 °C	Board Lock Grounding Indents Shielded		Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	Black
EDAC Inc. 633-M62-663-WN2	Copper Alloy	30 Áin	0.76 Ám	4	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	Male Pins Plug	Solder	Housing/Shell (4-40)	Gold	Signal	62	3	-55 °C	125 °C	Grounding Indents Shielded	Nickel Plated Steel	Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	White
EDAC Inc. 633-M62-263-WN5	Copper Alloy			4	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	Male Pins Plug	Solder	4-40	Gold	Signal	62	3	-55 °C	125 °C	Grounding Indents Shielded	Nickel Plated Steel	Board Edge Right Angle Through Hole	Polyamide (PA6T) Nylon 6T	5 A	White	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 17.01
		10	$ 14.74
		25	$ 13.97
		40	$ 13.77
		80	$ 12.15
		240	$ 11.34
		440	$ 11.10

Description

General part information

633-M62 Series

62 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources
