633-M62 Series

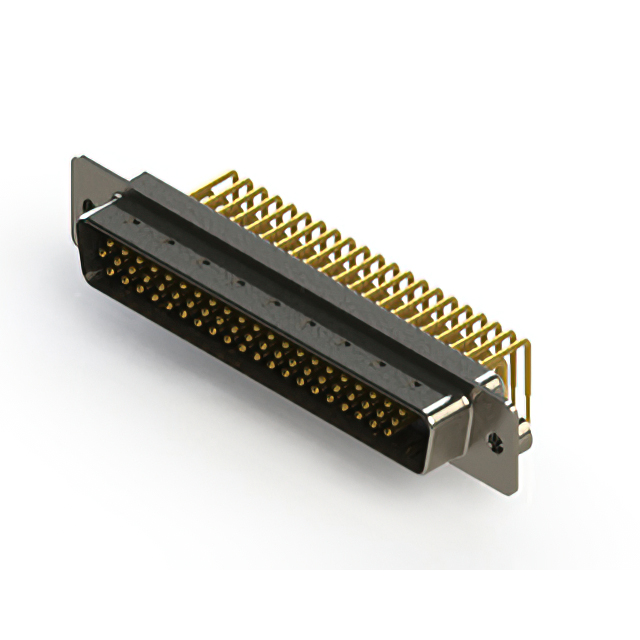

62 Position D-Sub, High Density Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	633-M62-263-WT2

Backset Spacing	0.35 in
Color	White
Connector Layout	DC, C, High Density
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded, Grounding Indents
Finish	Tin Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	62
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	4
Termination	Solder

633-M62 Series

Part	Contact Type	Connector Type	Contact Finish	Backset Spacing	Current Rating (Per Contact)	Number of Rows	Shell Size	Connector Layout	Material Flammability Rating	Flange Feature	Mounting Type	Connector Style	Termination	Number of Positions	Shell Material	Finish	Contact Finish Thickness	Features	Operating Temperature (Max)	Operating Temperature (Min)	Color	Dielectric Material	Contact Form	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 633-M62-363-WN6	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Board Side (4-40)	Board Edge Right Angle Through Hole	D-Sub High Density	Solder	62	Steel	Nickel Plated	15 µin	Grounding Indents Shielded	125 °C	-55 °C	White	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy
EDAC Inc. 633-M62-263-BN3	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Through Hole	D-Sub	Solder	62	Steel	Nickel Plated	0	Board Lock Grounding Indents Shielded	125 °C	-55 °C	Black	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy	Flash	Flash
EDAC Inc. 633-M62-363-WT4	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Through Hole	D-Sub High Density	Solder	62	Steel	Tin Plated	15 µin	Grounding Indents Shielded	125 °C	-55 °C	White	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy
EDAC Inc. 633-M62-263-WT2	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Through Hole	D-Sub High Density	Solder	62	Steel	Tin Plated	0	Grounding Indents Shielded	125 °C	-55 °C	White	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy	Flash	Flash
EDAC Inc. 633-M62-263-BT5	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Mating Side (4-40)	Board Edge Right Angle Through Hole	D-Sub High Density	Solder	62	Steel	Tin Plated	0	Grounding Indents Shielded	125 °C	-55 °C	Black	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy	Flash	Flash
EDAC Inc. 633-M62-663-BN2	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Through Hole	D-Sub High Density	Solder	62	Steel	Nickel Plated	30 µin	Grounding Indents Shielded	125 °C	-55 °C	Black	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy
EDAC Inc. 633-M62-663-WN4	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Through Hole	D-Sub High Density	Solder	62	Steel	Nickel Plated	30 µin	Grounding Indents Shielded	125 °C	-55 °C	White	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy
EDAC Inc. 633-M62-363-BT3	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Through Hole	D-Sub	Solder	62	Steel	Tin Plated	15 µin	Board Lock Grounding Indents Shielded	125 °C	-55 °C	Black	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy
EDAC Inc. 633-M62-663-WN2	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Housing Shell (4-40)	Board Edge Right Angle Through Hole	D-Sub High Density	Solder	62	Steel	Nickel Plated	30 µin	Grounding Indents Shielded	125 °C	-55 °C	White	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy
EDAC Inc. 633-M62-263-WN5	Signal	Male Pins Plug	Gold	0.35 in	5 A	3	4	C DC High Density	UL94 V-0	Mating Side (4-40)	Board Edge Right Angle Through Hole	D-Sub High Density	Solder	62	Steel	Nickel Plated	0	Grounding Indents Shielded	125 °C	-55 °C	White	Nylon 6T Polyamide (PA6T)	Machined	Copper Alloy	Flash	Flash
