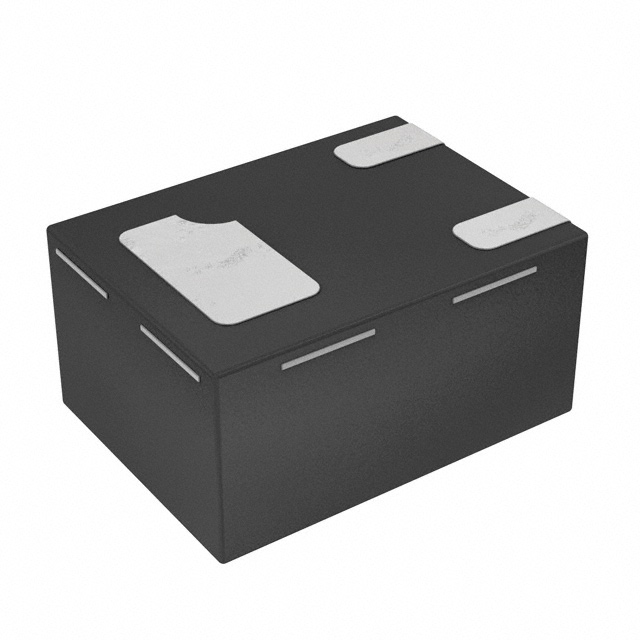

DMN25D0UFA-7B

Active

Diodes Inc

MOSFET N-CH 25V 240MA 3DFN

Search across all available documentation for this part.

Active

Diodes Inc

MOSFET N-CH 25V 240MA 3DFN

Technical Specifications

Parameters and characteristics for this part

Specification	DMN25D0UFA-7B

Current - Continuous Drain (Id) @ 25°C	240 mA
Drain to Source Voltage (Vdss)	25 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	2.7 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	0.36 nC
Input Capacitance (Ciss) (Max) @ Vds	27.9 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-XFDFN
Power Dissipation (Max)	280 mW
Rds On (Max) @ Id, Vgs	4 Ohm
Supplier Device Package	X2-DFN0806-3
Technology	MOSFET (Metal Oxide)
Vgs (Max) [Max]	8 V
Vgs(th) (Max) @ Id	1.2 V

N-Channel MOSFET

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max) [Max]	FET Type	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Mounting Type	Technology
Diodes Inc DMN25D0UFA-7B	X2-DFN0806-3	-55 °C	150 °C	8 V	N-Channel	25 V	280 mW	0.36 nC	4 Ohm	3-XFDFN	27.9 pF	1.2 V	240 mA	4.5 V	2.7 V	Surface Mount	MOSFET (Metal Oxide)
