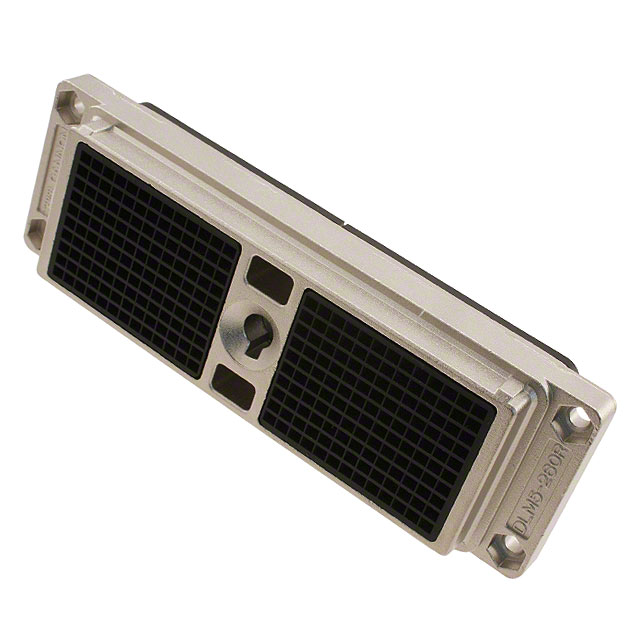

DLM5-260R

Active

ITT Cannon, LLC

CONNECTOR, ITT CANNON DL SERIES, 260 CONTACTS, 2.54 MM, RECEPTACLE, CRIMP, 10 ROWS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONNECTOR, ITT CANNON DL SERIES, 260 CONTACTS, 2.54 MM, RECEPTACLE, CRIMP, 10 ROWS

Technical Specifications

Parameters and characteristics for this part

Specification	DLM5-260R

Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Receptacle
Features	Actuating Camshaft Socket, Zero Insertion Force (ZIF), Shielding
Note	Contacts Not Included
Number of Positions	260
Number of Rows	10
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Note	Connector Type	Connector Usage	Features	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Material Flammability Rating	Termination	Color	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Columns
ITT Cannon, LLC DLM5-260R	Contacts Not Included	Housing for Non-Gendered Contacts	Receptacle	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	10	260	2.54 mm	0.1 in
ITT Cannon, LLC DLM5-260RW6B		Hermaphroditic Contacts Receptacle		Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	10	260	2.54 mm	0.1 in	UL94 V-0	Solder	Black	All	105 ░C	-55 °C	50 µin	1.27 µm	Gold	26
ITT Cannon, LLC DLM5-260PW6A		Hermaphroditic Contacts Plug		Actuating Camshaft Shielding Zero Insertion Force (ZIF)	10	260	2.54 mm	0.1 in	UL94 V-0	Solder	Black	All	105 ░C	-55 °C	50 µin	1.27 µm	Gold	26

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

260 Position Housing for Non-Gendered Contacts Connector Panel Mount
