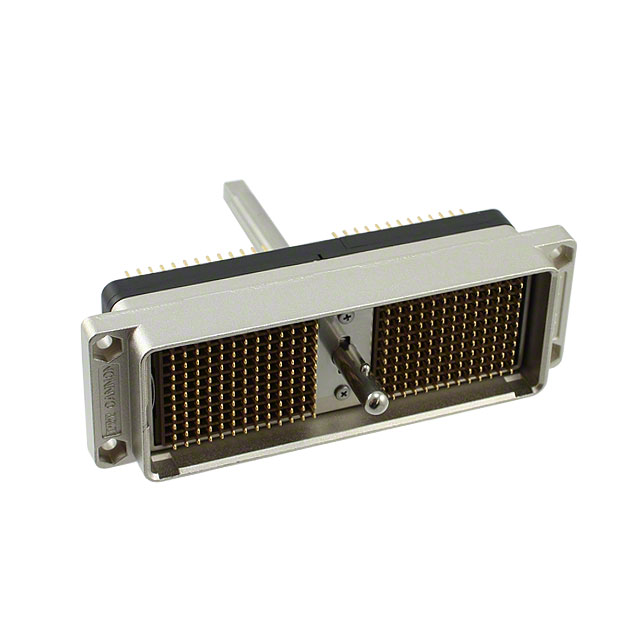

DLM5-260PW6A

Active

ITT Cannon, LLC

CONN PLUG 260POS PNL MNT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG 260POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DLM5-260PW6A

Color	Black
Connector Type	Hermaphroditic Contacts, Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Features	Shielding, Zero Insertion Force (ZIF), Actuating Camshaft
Material Flammability Rating	UL94 V-0
Number of Columns	26
Number of Positions	260
Number of Positions Loaded	All
Number of Rows	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Note	Connector Type	Connector Usage	Features	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Material Flammability Rating	Termination	Color	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Columns
ITT Cannon, LLC DLM5-260R	Contacts Not Included	Housing for Non-Gendered Contacts	Receptacle	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	10	260	2.54 mm	0.1 in
ITT Cannon, LLC DLM5-260RW6B		Hermaphroditic Contacts Receptacle		Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	10	260	2.54 mm	0.1 in	UL94 V-0	Solder	Black	All	105 ░C	-55 °C	50 µin	1.27 µm	Gold	26
ITT Cannon, LLC DLM5-260PW6A		Hermaphroditic Contacts Plug		Actuating Camshaft Shielding Zero Insertion Force (ZIF)	10	260	2.54 mm	0.1 in	UL94 V-0	Solder	Black	All	105 ░C	-55 °C	50 µin	1.27 µm	Gold	26

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

260 Connector Plug, Hermaphroditic Contacts Panel Mount Black
