CDCLVC1104EVM
ActiveEVAL MODULE FOR CDCLVC1104
Deep-Dive with AI
Search across all available documentation for this part.

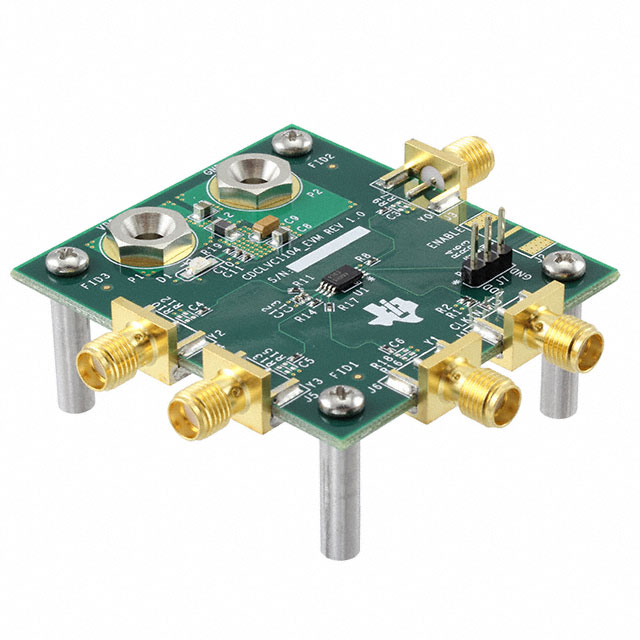

CDCLVC1104EVM
ActiveEVAL MODULE FOR CDCLVC1104
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CDCLVC1104EVM | CDCLVC1104 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Differential - Input:Output | - | False |
| Differential - Input:Output | - | False |
| Embedded | False | False |
| Frequency - Max | - | 250 MHz |
| Function | Clock Buffer | Clock Buffer |
| Input | - | LVCMOS |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Output | - | LVCMOS |
| Package / Case | - | 8-TSSOP (0.173", 4.40mm Width) |
| Ratio - Input:Output | - | 4 |
| Ratio - Input:Output | - | 1 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-TSSOP |
| Type | Timing | Fanout Buffer (Distribution), Timing |
| Utilized IC / Part | CDCLVC1104 | CDCLVC1104 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
CDCLVC1104 Series
Low jitter, 1:4 LVCMOS fan-out clock buffer
| Part | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Supplier Device Package | Mounting Type | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Number of Circuits | Output | Input | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Type | Supplied Contents | Embedded | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CDCLVC1104PW | 4 | 1 | 8-TSSOP | Surface Mount | 3.6 V | 2.3 V | 1 | LVCMOS | LVCMOS | 8-TSSOP (0.173", 4.40mm Width) | -40 °C | 85 °C | 250 MHz | Fanout Buffer (Distribution) | |||||||
Texas Instruments CDCLVC1104EVM | Timing | Board(s) | Clock Buffer | CDCLVC1104 | Board(s) |
Description
General part information
CDCLVC1104 Series
The CDCLVC11xx is a modular, high-performance, low-skew, general-purpose clock buffer family from Texas Instruments.
The entire family is designed with a modular approach in mind. It is intended to round up TI’s series of LVCMOS clock generators.
Seven different fan-out variations, 1:2 to 1:12, are available. All of the devices are pin-compatible to each other for easy handling.
Documents
Technical documentation and resources
