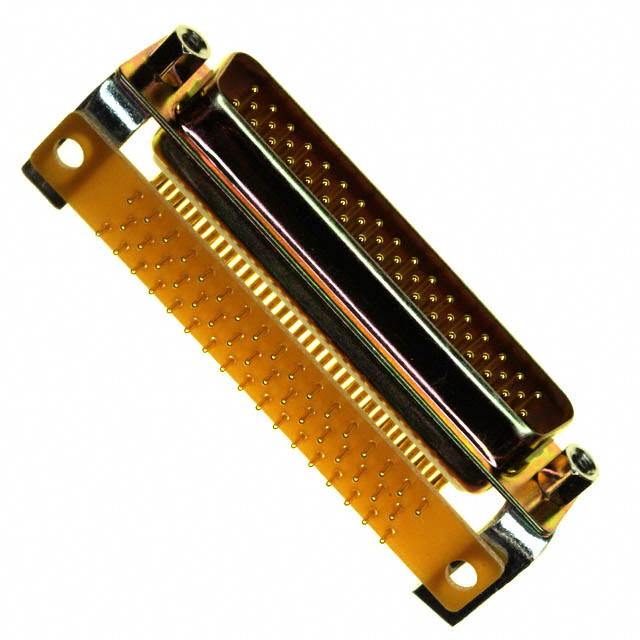

Specification	173-E50-111R141

Backset Spacing	0.283 in
Color	White
Connector Layout	D, DD
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Brass
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Mounting Brackets
Finish	Yellow Chromate Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	50
Number of Rows	3
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	5
Termination	Solder

173-E50 Series

Part	Mounting Type	Number of Positions	Contact Type	Number of Rows	Material Flammability Rating	Connector Style	Contact Finish Thickness (string set options)	Contact Finish Thickness	Shell Material	Finish	Termination	Shell Size	Connector Layout	Current Rating	Connector Type	Contact Finish	Flange Feature	Features	Backset Spacing	Contact Material	Color	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Form	Dielectric Material
NorComp Inc. 173-E50-113R241	Panel Mount Right Angle Through Hole	50	Signal	3	UL94 V-0	D-Sub	Flash	Flash	Steel	Nickel Plated	Solder	5	D DD	5 A	Male Pins Plug	Gold	Mating Side Standard Screws (4-40)	Grounding Indents Mounting Brackets	0.283 in	Brass	White	500 V	-50 °C	100 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E50-113R001	Panel Mount Right Angle Through Hole	50	Signal	3	UL94 V-0	D-Sub	Flash	Flash	Steel	Nickel Plated	Solder	5	D DD	5 A	Male Pins Plug	Gold	Housing Shell (Unthreaded)	Grounding Indents	0.283 in	Brass	White		-50 °C	100 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E50-113R141	Panel Mount Right Angle Through Hole	50	Signal	3	UL94 V-0	D-Sub	Flash	Flash	Steel	Nickel Plated	Solder	5	D DD	5 A	Male Pins Plug	Gold	Female Screwlock (4-40) Mating Side	Grounding Indents Mounting Brackets	0.283 in	Brass	White		-50 °C	100 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E50-213R461	Right Angle Through Hole	50	Signal	3	UL94 V-0	D-Sub	Flash	Flash	Steel	Nickel Plated	Solder	5	D DD	5 A	Female Sockets Receptacle	Gold	Housing Shell (4-40)	Board Lock Mounting Brackets	0.283 in	Copper	White		-55 °C	125 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E50-211R001	Panel Mount Right Angle Through Hole	50	Signal	3	UL94 V-0	D-Sub	Flash	Flash	Steel	Yellow Chromate Plated	Solder	5	D DD	5 A	Female Sockets Receptacle	Gold	Housing Shell (Unthreaded)		0.283 in		White		-50 °C	100 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E50-111R141	Panel Mount Right Angle Through Hole	50	Signal	3	UL94 V-0	D-Sub	Flash	Flash	Steel	Yellow Chromate Plated	Solder	5	D DD	5 A	Male Pins Plug	Gold	Female Screwlock (4-40) Mating Side	Mounting Brackets	0.283 in	Brass	White		-50 °C	100 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E50-213R141	Right Angle Through Hole	50	Signal	3	UL94 V-0	D-Sub	Flash	Flash	Steel	Nickel Plated	Solder	5	D DD	5 A	Female Sockets Receptacle	Gold	Female Screwlock (4-40) Mating Side	Mounting Brackets	0.283 in	Copper	White		-55 °C	125 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E50-211R141	Panel Mount Right Angle Through Hole	50	Signal	3	UL94 V-0	D-Sub	Flash	Flash	Steel	Yellow Chromate Plated	Solder	5	D DD	5 A	Female Sockets Receptacle	Gold	Female Screwlock (4-40) Mating Side	Mounting Brackets	0.283 in		White		-50 °C	100 °C	Machined	Nylon 6T Polyamide (PA6T)
NorComp Inc. 173-E50-212-001	Panel Mount Right Angle Through Hole	50	Signal	3	UL94 V-0	D-Sub	Flash	Flash	Steel	Tin Plated	Solder	5	D DD	5 A	Female Sockets Receptacle	Gold	Housing Shell (Unthreaded)		0.283 in		White		-50 °C	100 °C	Machined	Polybutylene Terephthalate (PBT)
