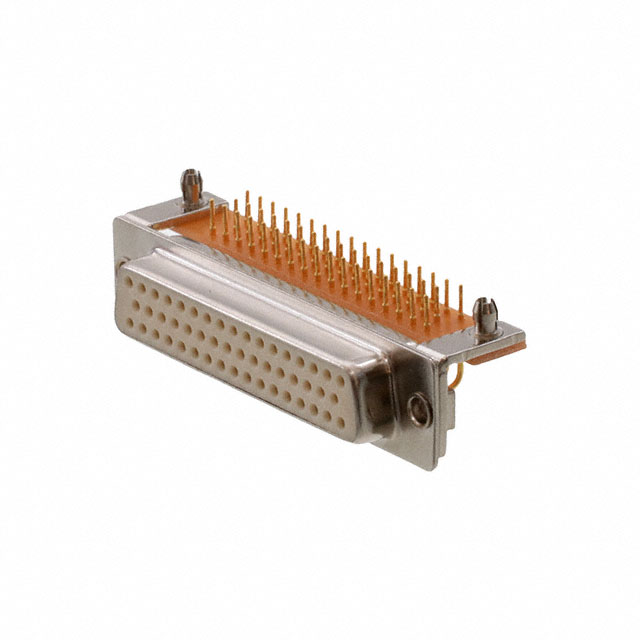

173-E50-213R461 - 173-E50-213R461

173-E50-213R461

Active
MH Connectors

D SUB CONNECTOR, DB50, STANDARD, RECEPTACLE, 173-E M SERIES, 50 CONTACTS, DD, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image ENDrawing EN+3
173-E50-213R461 - 173-E50-213R461

173-E50-213R461

Active
MH Connectors

D SUB CONNECTOR, DB50, STANDARD, RECEPTACLE, 173-E M SERIES, 50 CONTACTS, DD, SOLDER

Deep-Dive with AI

Documents3D Product Image ENDrawing EN+3

Technical Specifications

Parameters and characteristics for this part

Specification173-E50-213R461
Backset Spacing0.283 in
Backset Spacing7.2 mm
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
FeaturesBoard Lock, Mounting Brackets
Flange FeatureHousing/Shell (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions50
Number of Rows3
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout5
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 25.22
10$ 22.09
25$ 21.13
40$ 20.45
80$ 19.77
240$ 18.68
440$ 18.13
NewarkEach 50$ 19.76

Description

General part information

173-E50-213R461

50 Position D-Sub Receptacle, Female Sockets Connector
