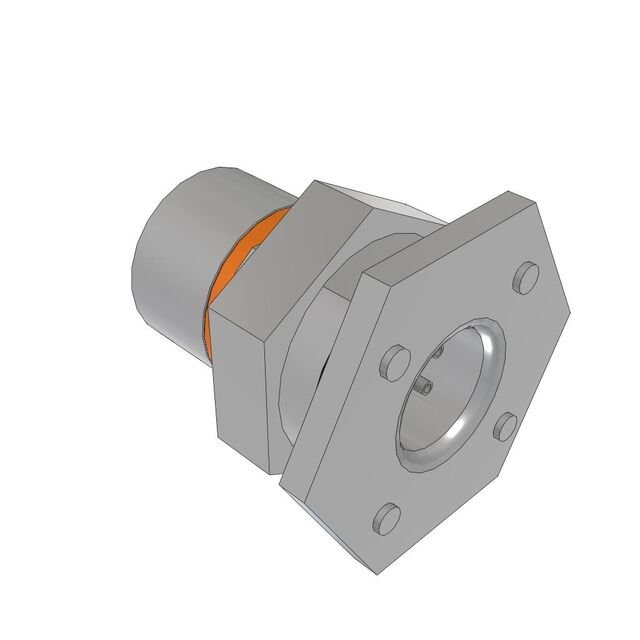

Specification	ACRK-12-02-G-S-C-P-1

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 µin
Contact Material	Brass
Current Rating (Per Contact)	3.6 A
Fastening Type	Bayonet Lock
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	PBT, Polybutylene Terephthalate
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	5
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-10 °C
Orientation Angle	1 °
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert	12
Shell Size - Insert	12
Shielding	Unshielded
Termination	Solder Cup

ACRK-12 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Connector Type	Color	Insert Material	Number of Positions	Mounting Type	Current Rating (Per Contact)	Contact Finish - Mating	Primary Material	Ingress Protection IP Rating	Ingress Protection Description	Shell Size - Insert	Shell Size - Insert	Shell Material	Contact Material	Contact Finish Thickness - Mating	Termination	Fastening Type	Mounting Feature	Orientation Angle
Samtec Inc. ACRK-12-02-G-S-C-P-1	-10 °C	80 °C	Unshielded	Female Sockets Receptacle	Black	PBT Polybutylene Terephthalate	5	Panel Mount	3.6 A	Gold	Plastic	IP68	Dust Tight Waterproof	12	12	Nylon Polyamide (PA)	Brass	10 µin	Solder Cup	Bayonet Lock	Bulkhead Front Side Nut	1 °
