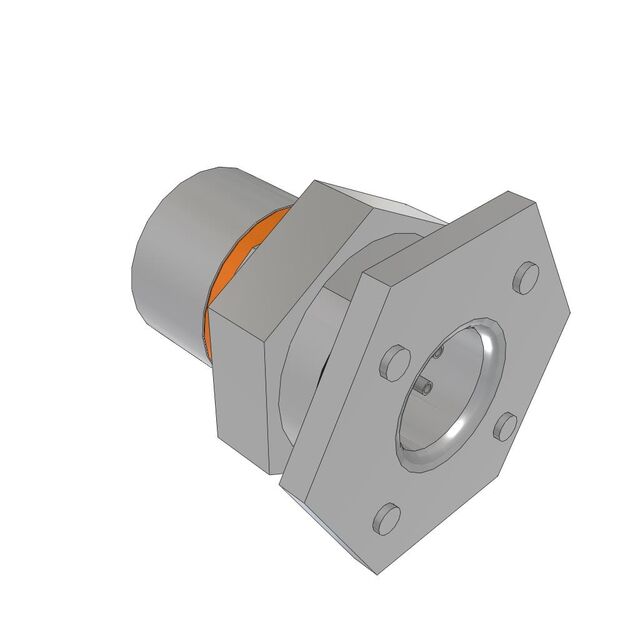

ACRK-12 Series
Manufacturer: Samtec Inc.
Beta
⌘K
ACCLIMATE IP68 SEALED CIRCULAR R
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Shielding | Connector Type | Color | Insert Material | Number of Positions | Mounting Type | Current Rating (Per Contact) | Contact Finish - Mating | Primary Material | Ingress Protection IP Rating | Ingress Protection Description | Shell Size - Insert | Shell Size - Insert | Shell Material | Contact Material | Contact Finish Thickness - Mating | Termination | Fastening Type | Mounting Feature | Orientation Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | -10 °C | 80 °C | Unshielded | Female Sockets Receptacle | Black | PBT Polybutylene Terephthalate | 5 | Panel Mount | 3.6 A | Gold | Plastic | IP68 | Dust Tight Waterproof | 12 | 12 | Nylon Polyamide (PA) | Brass | 10 µin | Solder Cup | Bayonet Lock | Bulkhead Front Side Nut | 1 ° |
