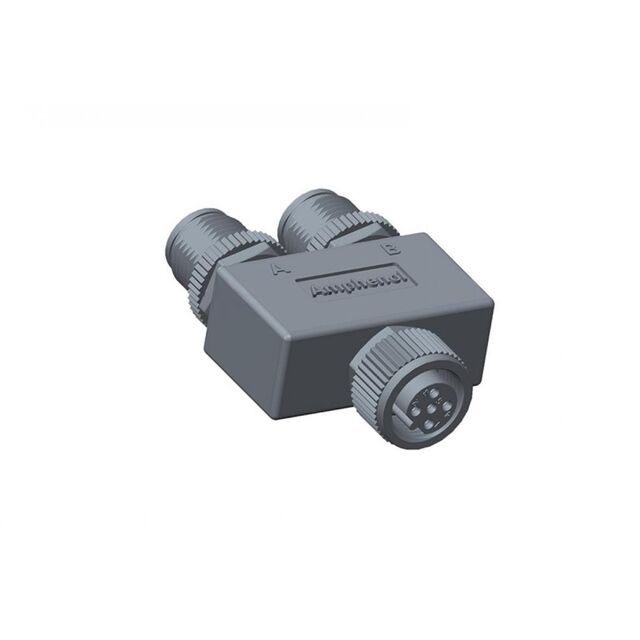

YA-B05F-B05M-B05M-01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, Y ADAPTOR, METAL, A CODING, 4A, 05 PINS, (END 1) FEMALE FEMALE, (END 2) MALE MALE, (END 3) MALE MALE,

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, Y ADAPTOR, METAL, A CODING, 4A, 05 PINS, (END 1) FEMALE FEMALE, (END 2) MALE MALE, (END 3) MALE MALE,

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Distributor Y-Shaped 5/5 (2) Female Sockets/Male Pins (2) Free Hanging (In-Line)

Technical documentation and resources

No documents available

Specification	YA-B05F-B05M-B05M-01	YAB Series

Connector Style	Distributor Y-Shaped	Distributor Y-Shaped
Convert From (Adapter End)	Female Sockets	Male Pins, Female Sockets
Convert To (Adapter End)	Male Pins (2)	Female Sockets (2), Male Pins (2)
Current Rating (Amps)	4 A	4 A
Housing Color	Black	Black
Housing Material	Thermoplastic	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions (Convert From)	5	5
Number of Positions (Convert To)	5	5
Number of Positions (Convert To)	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation (Convert From)	B	B
Orientation (Convert To)	B	B
Primary Material	Plastic	Plastic
Shell Size - Insert (Convert From)	M12	M12
Shell Size - Insert (Convert To) [custom]	M12	M12
Shielding	Unshielded	Unshielded
Voltage Rating	60 VDC	60 VDC

Part	Primary Material	Current Rating (Amps)	Voltage Rating	Convert To (Adapter End)	Number of Positions (Convert To)	Number of Positions (Convert To)	Orientation (Convert From)	Mounting Type	Ingress Protection	Shell Size - Insert (Convert From)	Number of Positions (Convert From)	Orientation (Convert To)	Convert From (Adapter End)	Housing Material	Housing Color	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Shell Size - Insert (Convert To) [custom]
Amphenol LTW YA-B05M-B05F-B05F-01	Plastic	4 A	60 VDC	Female Sockets (2)	5	2	B	Free Hanging (In-Line)	IP68 - Dust Tight, Waterproof	M12	5	B	Male Pins	Thermoplastic	Black	Unshielded	85 °C	-20 C	Distributor Y-Shaped	M12
Amphenol LTW YA-B05F-B05M-B05M-01	Plastic	4 A	60 VDC	Male Pins (2)	5	2	B	Free Hanging (In-Line)	IP68 - Dust Tight, Waterproof	M12	5	B	Female Sockets	Thermoplastic	Black	Unshielded	85 °C	-20 C	Distributor Y-Shaped	M12
