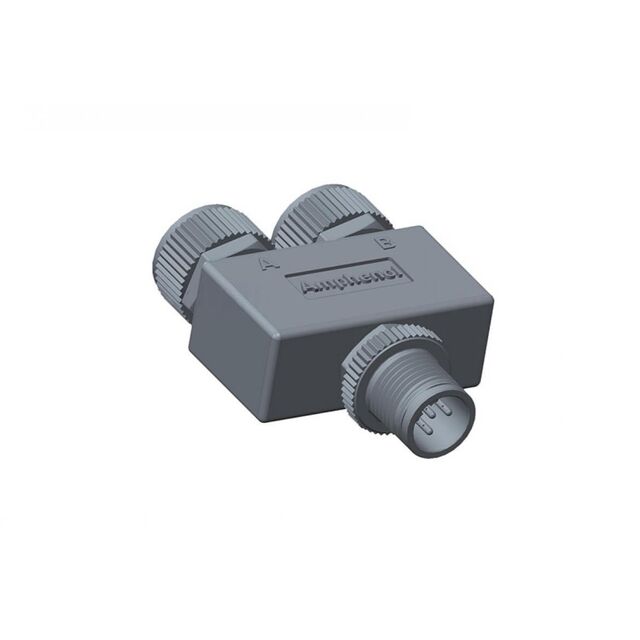

YA-B05M-B05F-B05F-01

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 05 PINS

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 05 PINS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YA-B05M-B05F-B05F-01	YAB Series

Connector Style	Distributor Y-Shaped	Distributor Y-Shaped
Convert From (Adapter End)	Male Pins	Male Pins, Female Sockets
Convert To (Adapter End)	Female Sockets (2)	Female Sockets (2), Male Pins (2)
Current Rating (Amps)	4 A	4 A
Housing Color	Black	Black
Housing Material	Thermoplastic	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions (Convert From)	5	5
Number of Positions (Convert To)	5	5
Number of Positions (Convert To)	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation (Convert From)	B	B
Orientation (Convert To)	B	B
Primary Material	Plastic	Plastic
Shell Size - Insert (Convert From)	M12	M12
Shell Size - Insert (Convert To) [custom]	M12	M12
Shielding	Unshielded	Unshielded
Voltage Rating	60 VDC	60 VDC

M SERIES, ACCESSORY, 4A, 05 PINS

Part	Primary Material	Current Rating (Amps)	Voltage Rating	Convert To (Adapter End)	Number of Positions (Convert To)	Number of Positions (Convert To)	Orientation (Convert From)	Mounting Type	Ingress Protection	Shell Size - Insert (Convert From)	Number of Positions (Convert From)	Orientation (Convert To)	Convert From (Adapter End)	Housing Material	Housing Color	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Shell Size - Insert (Convert To) [custom]
Amphenol LTW YA-B05M-B05F-B05F-01	Plastic	4 A	60 VDC	Female Sockets (2)	5	2	B	Free Hanging (In-Line)	IP68 - Dust Tight, Waterproof	M12	5	B	Male Pins	Thermoplastic	Black	Unshielded	85 °C	-20 C	Distributor Y-Shaped	M12
Amphenol LTW YA-B05F-B05M-B05M-01	Plastic	4 A	60 VDC	Male Pins (2)	5	2	B	Free Hanging (In-Line)	IP68 - Dust Tight, Waterproof	M12	5	B	Female Sockets	Thermoplastic	Black	Unshielded	85 °C	-20 C	Distributor Y-Shaped	M12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 18.03

General part information

Circular Connector Distributor Y-Shaped 5/5 (2) Male Pins/Female Sockets (2) Free Hanging (In-Line)
